Name: MCP1827ST-5002E/EB
Brand: Microchip Technology
SKU: MCP1827ST-5002E/EB
Price: 1.71000 USD
Availability: InStock

new-10%

MCP1827ST-5002E/EB

Manufacturer part number:MCP1827ST-5002E/EB

Manufacturer:Microchip Technology

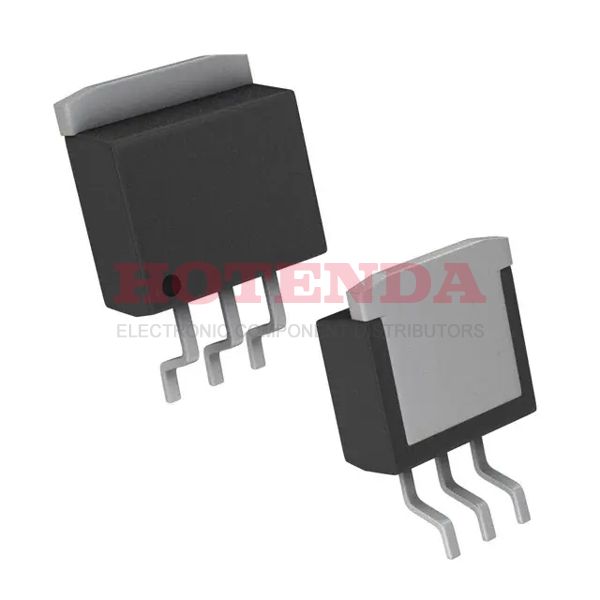

Description:-- Fixed 2.54mm MCP1827S PMIC -- Series 3 TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:MCP1827ST-5002E/EB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Number of Pins	3
Supplier Device Package	3-DDPAK
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	D2PAK
Input Voltage Range	6, 2.3 V
Maximum Input Voltage	6 V
Junction to Ambient	31.4 °C/W
Mounting	Surface Mount
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1827
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2006
Series	--
Tolerance	2 %
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	2.54mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1827S
Pin Count	3
JESD-30 Code	R-PSSO-G3
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	5V
Output Type	Fixed
Max Output Current	1.5A
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	120μA
Control Features	--
Accuracy	2 %
Output Voltage 1	5V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	220μA
Voltage Dropout (Max)	0.6V @ 1.5A
PSRR	60dB (100Hz)
Reference Voltage	0.41 V
Seated Height-Max	5.08 mm
Dropout Voltage	330mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.33V
Min Output Voltage	5V
Output Voltage1-Max	5.125 V
Output Voltage1-Min	4.875 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2.5%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Input Bias Current	120μA
Adjustability	FIXED
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Load Regulation	0.5 %
Product Category	LDO Voltage Regulators
Height Seated (Max)	5.08mm
Width	4.65 mm
Height	10.41 mm
Length	9.4 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1827ST-5002E/EB Product Details

MCP1827ST-5002E/EB Overview

The package contains a Tape & Reel (TR) case. In TO-263-4, D2Pak (3 Leads + Tab), TO-263AA cases, it is packaged. This gadget has 3 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 1.5A at the moment. 3 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. As far as its dropout voltage is concerned, it is 10 volts. The regulator IC has 3 pins. I just wanted to let you know that this IC voltage regulator has the part number MCP1827S as its basic part number. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. In this case, the IC voltage regulator will be packed in the following way. When operating at maximum output current, the regulator IC reaches 1.5A. It operates in the 120μA Quiescent Current state. It belongs to the -- Series of regulators. It is characterized as having 2 % tolerance, which is quite low.
