KA78L18AZTA Overview

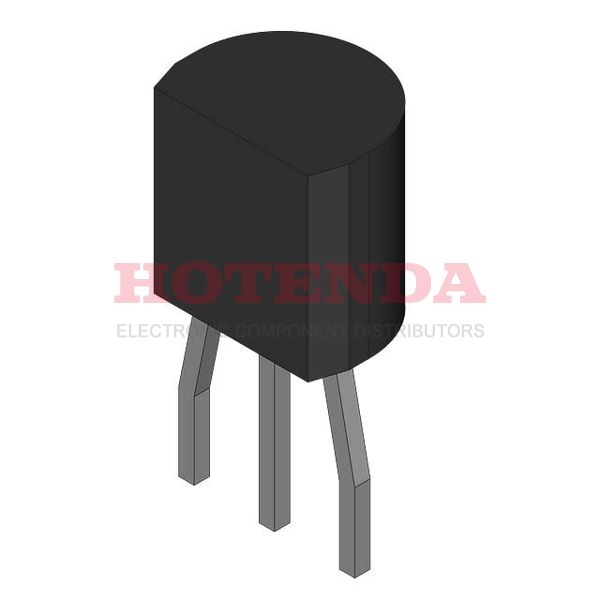

A Tape & Box (TB) case is used to deliver the Voltage Regulated IC. A TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) case is used for packaging. As you can see, the IC chip has 3 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. 0°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 3 pins are on the chip. For your information, this regulator's basic part number is KA78L18. There is a way of packing the regulator that is called AMMO PACK. To meet operation requirements, the voltage regulator IC has a maximum output current of 100mA. It operates in the 6mA Quiescent Current state.
KA78L18AZTA Features
1.7V dropout voltage
AMMO PACK method of packing
KA78L18AZTA Applications
There are a lot of ON Semiconductor
KA78L18AZTA Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
