Name: MCP1827-5002E/AT
Brand: Microchip Technology
SKU: MCP1827-5002E/AT
Price: 1.88000 USD
Availability: InStock

new-10%

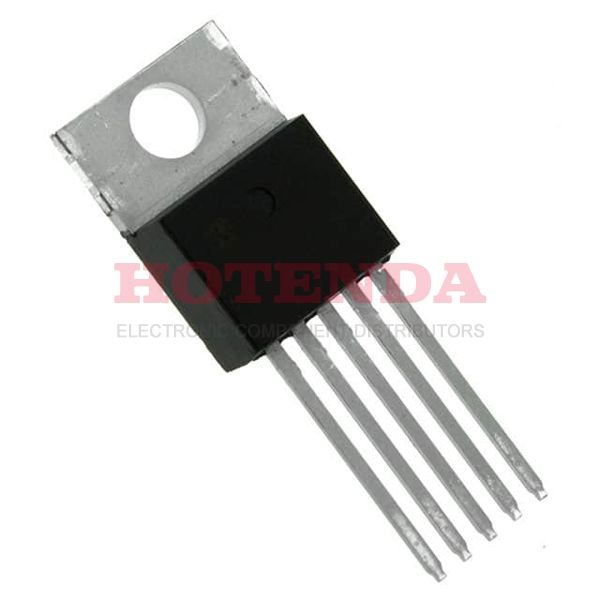

MCP1827-5002E/AT

Manufacturer part number:MCP1827-5002E/AT

Manufacturer:Microchip Technology

Description:Enable, Power Good Fixed 1.7 mm MCP1827 PMIC -- Series 3 TO-220-5

Case Package:SOT-23

Datasheet:MCP1827-5002E/AT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Package / Case	TO-220-5
Mounting Type	Through Hole
Mount	Through Hole
Surface Mount	NO
Number of Pins	5
Supplier Device Package	TO-220-5
Number of Terminals	5
Mounting Style	Through Hole
Supplier Package	TO-220
Input Voltage Range	6, 2.3 V
Maximum Input Voltage	6 V
Junction to Ambient	29.3 °C/W
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tube
Base Product Number	MCP1827
Mfr	Microchip Technology
Product Status	Active
Mounting	Through Hole
Package Shape	RECTANGULAR
Packaging	Tube
Series	--
Published	2006
Operating Temperature	-40°C~125°C
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Terminal Position	SINGLE
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Number of Functions	1
Terminal Pitch	1.7 mm
Reach Compliance Code	compliant
Base Part Number	MCP1827
Pin Count	3
JESD-30 Code	R-PSFM-T5
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	5V
Output Type	Fixed
Max Output Current	1.5A
Polarity	Positive
Output Configuration	Positive
Output Current	1.5 A
Current - Output	1.5A
Quiescent Current	220μA
Control Features	Enable, Power Good
Accuracy	2 %
Output Voltage 1	5V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Min Input Voltage	2.3V
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	220µA
Voltage Dropout (Max)	0.6V @ 1.5A
PSRR	60dB (100Hz)
Dropout Voltage	330mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.33V
Output Voltage1-Max	5.125 V
Output Voltage1-Min	4.875 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2.5%
Output Current1-Max	1.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Nominal Output Voltage	5V
Input Bias Current	120μA
Adjustability	FIXED
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Load Regulation	0.5 %
Product Category	LDO Voltage Regulators
Width	4.826mm
Length	10.67mm
Height	16.51mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1827-5002E/AT Product Details

MCP1827-5002E/AT Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a TO-220-5 package. There are 5 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.5A. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 5. FYI, the basic part number for this IC regulator is MCP1827. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It works in 1.5A output current at mostIt operates in the 220μA Quiescent Current state. It is part of the -- Series.
