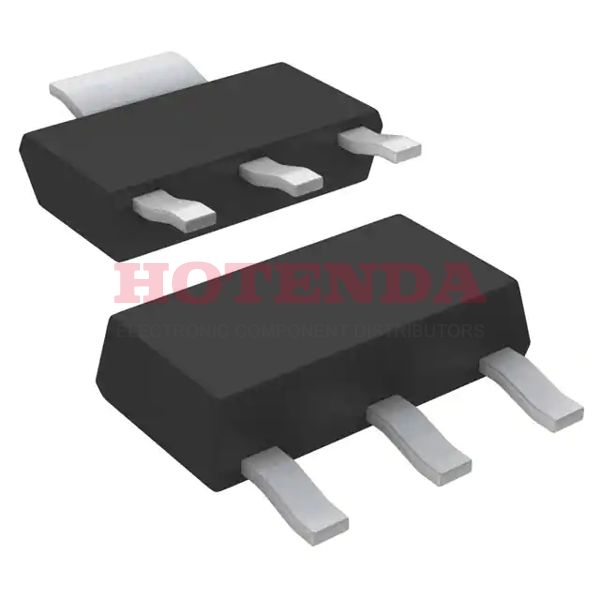

Name: MIC5200-3.3YS-TR
Brand: Microchip Technology
SKU: MIC5200-3.3YS-TR
Price: 1.39000 USD
Availability: InStock

new-10%

MIC5200-3.3YS-TR

Manufacturer part number:MIC5200-3.3YS-TR

Manufacturer:Microchip Technology

Description:-- Fixed 2.31 mm MIC5200 PMIC -- Series 3 TO-261-4, TO-261AA

Case Package:SOT-23

Datasheet:MIC5200-3.3YS-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Number of Pins	4
Supplier Device Package	SOT-223-3
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	SOT-223
Junction to Case	15 °C/W
Input Voltage Range	2.5 to 26 V
Maximum Input Voltage	26 V
Mounting	Surface Mount
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5200
Mfr	Microchip Technology
Product Status	Active
MSL	MSL 3 - 168 hours
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Type	Low Dropout Regulator
Terminal Finish	MATTE TIN
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.31 mm
Reach Compliance Code	compliant
Base Part Number	MIC5200
Pin Count	3
JESD-30 Code	R-PDSO-G3
Function	LDO
Current - Supply (Max)	1.5mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	3.3V
Output Type	Fixed
Max Output Current	100mA
Polarity	Positive
Output Configuration	Positive
Output Current	0.1 A
Current - Output	100mA
Quiescent Current	10 nA
Control Features	--
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	350μA
Voltage Dropout (Max)	0.35V @ 100mA
Max Input Voltage	26V
PSRR	--
Seated Height-Max	1.8 mm
Dropout Voltage	230mV
Product Type	LDO Voltage Regulators
Min Output Voltage	3.3V
Output Voltage1-Max	3.366 V
Output Voltage1-Min	3.234 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Min Current Limit	100mA
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Output Voltage Accuracy	1 %
Line Regulation	0.1 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	0.16 %
Product	LDO Voltage Regulators
Product Category	LDO Voltage Regulators
Width	3.505 mm
Length	6.5 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5200-3.3YS-TR Product Details

MIC5200-3.3YS-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-261-4, TO-261AA package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 100mA. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 4. FYI, the basic part number for this IC regulator is MIC5200. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. It works in 100mA output current at mostIt operates in the 10 nA Quiescent Current state. It is part of the -- Series. The regulator operates with a maximum operating temperature of 125°C. At the very least, the voltage regulator IC works with a -40°C operating temperature.
