Name: MCP1825ST-5002E/EB
Brand: Microchip Technology
SKU: MCP1825ST-5002E/EB
Price: 1.07000 USD
Availability: InStock

new-10%

MCP1825ST-5002E/EB

Manufacturer part number:MCP1825ST-5002E/EB

Manufacturer:Microchip Technology

Description:-- Fixed 2.54mm MCP1825S PMIC -- Series 3 TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:MCP1825ST-5002E/EB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Number of Pins	3
Supplier Device Package	3-DDPAK
Number of Terminals	3
Mounting Style	SMD/SMT
Supplier Package	D2PAK
Junction to Case	3 °C/W
Input Voltage Range	6, 2.1 V
Maximum Input Voltage	6 V
Junction to Ambient	31.4 °C/W
Mounting	Surface Mount
Package	Tape & Reel (TR)
Base Product Number	MCP1825
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
RoHS	Details
Brand	Microchip Technology
Manufacturer	Microchip
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2008
Series	--
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	2.54mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1825S
Pin Count	3
JESD-30 Code	R-PSSO-G3
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	5V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.5 A
Current - Output	500mA
Quiescent Current	220μA
Control Features	--
Output Voltage 1	5V
Voltage - Output (Min/Fixed)	5V
Number of Regulators	1
Min Input Voltage	2.1V
Protection Features	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	220µA
Voltage Dropout (Max)	0.35V @ 500mA
PSRR	60dB (100Hz)
Seated Height-Max	5.08 mm
Dropout Voltage	210mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.21V
Output Voltage1-Max	5.025 V
Output Voltage1-Min	4.975 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2.5%
Output Current1-Max	0.5 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.35 V
Screening Level	Extended
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6.5 V
Input Bias Current	120μA
Output Voltage Accuracy	0.5 %
Adjustability	FIXED
Line Regulation	0.05 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	5 V
Load Regulation	0.5 %
Product Category	LDO Voltage Regulators
Height Seated (Max)	5.08mm
Width	9.017 mm
Length	10.16 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MCP1825ST-5002E/EB Product Details

MCP1825ST-5002E/EB Overview

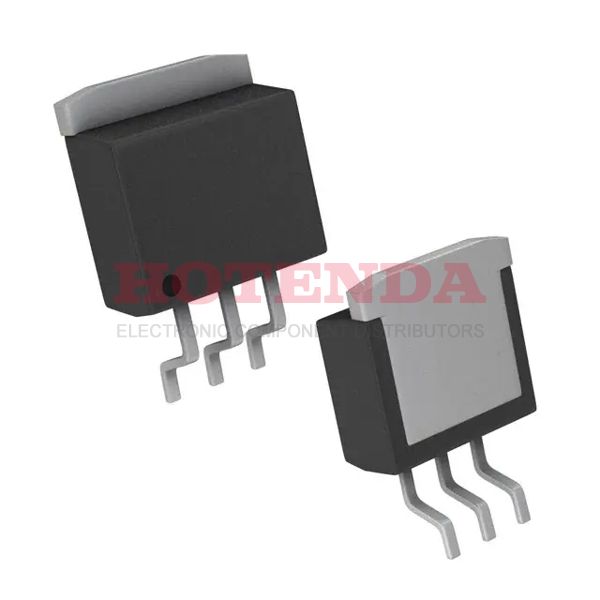

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-263-4, D2Pak (3 Leads + Tab), TO-263AA case. On the regulater IC chip, there are a total of 3 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 500mA. A total of 3 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 3 pins on the chip. As an FYI, this IC voltage regulator has the basic part number MCP1825S. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way. It operates in the 220μA Quiescent Current state. This model is a part of the -- Series and is of high quality.
