Name: MIC5231-3.3YM5-TR
Brand: Microchip Technology
SKU: MIC5231-3.3YM5-TR
Price: 1.49000 USD
Availability: InStock

new-10%

MIC5231-3.3YM5-TR

Manufacturer part number:MIC5231-3.3YM5-TR

Manufacturer:Microchip Technology

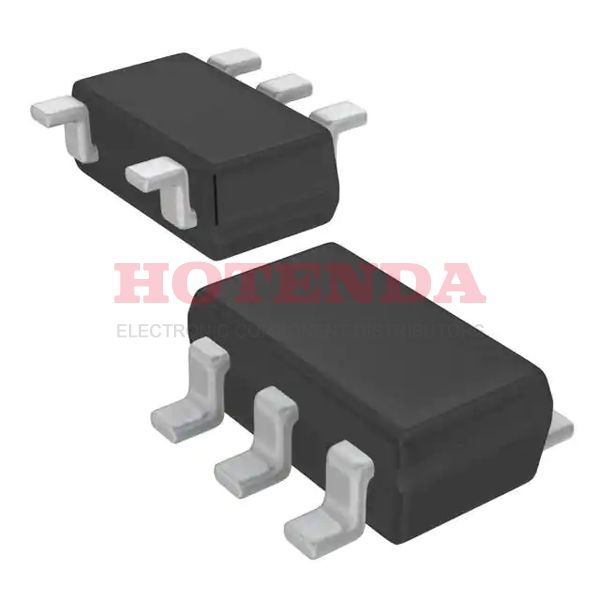

Description:Enable Fixed 0.95 mm MIC5231 PMIC - Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MIC5231-3.3YM5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Number of Pins	5
Supplier Device Package	SOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	SOT-23
Junction to Case	130 °C/W
Input Voltage Range	3.5 to 12 V
Maximum Input Voltage	12 V
Junction to Ambient	235 °C/W
Mounting	Surface Mount
Dropout Voltage@Current (Max)	0.3@10mA
Package Type	SOT-23
Dropout Voltage@Current (Typ)	0.015@1mA/0.15@10mA
Operating Temp Range	-40C to 85C
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5231
Mfr	Microchip Technology
Product Status	Active
MSL	MSL 1 - Unlimited
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	-
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	LDO
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5231
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	12V
Output Voltage	3.3V
Output Type	Fixed
Max Output Current	10mA
Polarity	Positive
Max Supply Voltage	12V
Min Supply Voltage	3.5V
Output Configuration	Positive
Output Current	0.01 A
Current - Output	10mA
Quiescent Current	650 nA
Control Features	Enable
Accuracy	2 %
Input Voltage (Min)	3.5(V)
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Min Input Voltage	3.5V
Protection Features	-
Current - Quiescent (Iq)	4μA
Voltage Dropout (Max)	0.3V @ 10mA
Max Input Voltage	12V
PSRR	50dB (100Hz)
Seated Height-Max	1.45 mm
Dropout Voltage	150mV
Product Type	LDO Voltage Regulators
Min Output Voltage	3.3V
Operating Temperature Range	- 4
Output Voltage1-Max	3.399 V
Output Voltage1-Min	3.201 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.3 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Nominal Output Voltage	3.3V
Output Voltage Accuracy	2 %
Max Junction Temperature (Tj)	125°C
Line Regulation	0.25 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Ambient Temperature Range High	85°C
Load Regulation	1 %
Product	Micropower LDO Regulators
Input Voltage	12(V)
Product Category	LDO Voltage Regulators
Height	1.45mm
Width	1.6 mm
Length	2.9 mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5231-3.3YM5-TR Product Details

MIC5231-3.3YM5-TR Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a SC-74A, SOT-753 case. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 10mA. A total of 5 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 5 pins on the chip. As an FYI, this IC voltage regulator has the basic part number MIC5231. An example of such a component would be this PMIC - Power Management ICs component. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 10mA. It operates in the 650 nA Quiescent Current state. This model is a part of the - Series and is of high quality. If the temperature is below 125°C, it is recommended that you utilize this feature. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature. The top supply voltage can be set to 12V volts.
