Name: MCP1812BT-040/LB
Brand: Microchip Technology
SKU: MCP1812BT-040/LB
Availability: InStock

new-10%

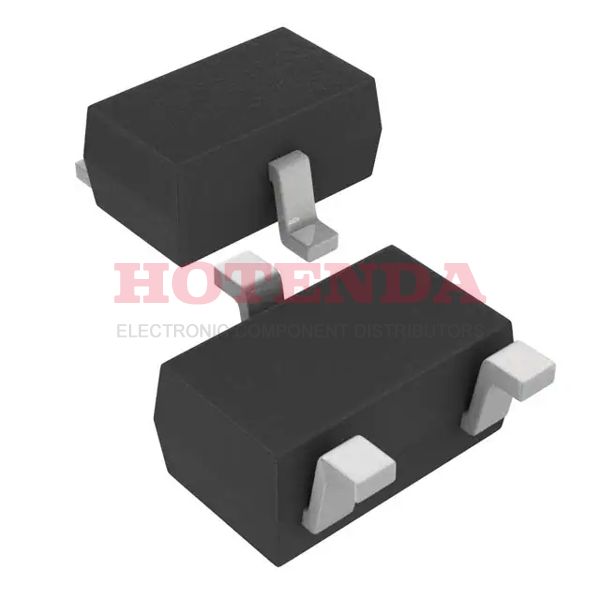

MCP1812BT-040/LB

Manufacturer part number:MCP1812BT-040/LB

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm PMIC - Series SC-70, SOT-323

Case Package:SOT-23

Datasheet:MCP1812BT-040/LB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Surface Mount	YES
Supplier Device Package	SC-70-3
Number of Terminals	3
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1812
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	-
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
JESD-30 Code	R-PDSO-G3
Current - Supply (Max)	220μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable
Output Voltage 1	4V
Input Voltage (Min)	4.6V
Voltage - Output (Min/Fixed)	4V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	0.5μA
Voltage Dropout (Max)	0.6V @ 300mA
PSRR	50dB (1kHz)
Seated Height-Max	1.1 mm
Dropout Voltage1-Nom	0.4V
Output Voltage1-Max	4.16 V
Output Voltage1-Min	3.84V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.3 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	4 V
Length	2mm
Width	1.25 mm

MCP1812BT-040/LB Product Details

MCP1812BT-040/LB Overview
