L78S12CV-DG Overview

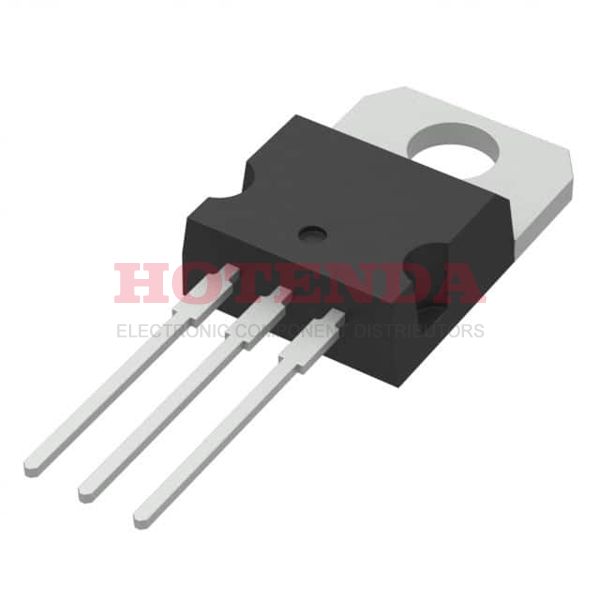

The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-220-3 case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at 0°C~150°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. As you can see, the regulator IC has a total of 3 pins. For your information, part number L78S12 is the basic part number for this voltage regulator IC. There is a maximum output current of 2A for this regulator to meet the operational requirements. It operates in the 8mA Quiescent Current state.
L78S12CV-DG Features
L78S12CV-DG Applications
There are a lot of STMicroelectronics
L78S12CV-DG Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
