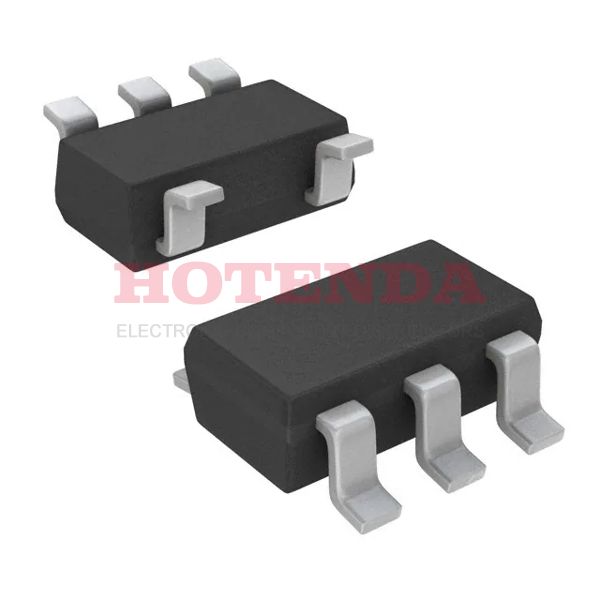

Name: MCP1804T-C002I/OT
Brand: Microchip Technology
SKU: MCP1804T-C002I/OT
Price: 0.90000 USD
Availability: InStock

new-10%

MCP1804T-C002I/OT

Manufacturer part number:MCP1804T-C002I/OT

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm Tin MCP1804 PMIC -- Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MCP1804T-C002I/OT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Number of Pins	5
Supplier Device Package	SOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Polarity Type	Positive
Regulator Output Type	Fixed
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.17@20mA/0.85@100mA
Operating Temperature Classification	Industrial
Package Type	SOT-23
Dropout Voltage@Current (Typ)	0.12@20mA/0.65@100mA
Operating Temp Range	-40C to 85C
Rad Hardened	No
Mounting	Surface Mount
RoHS	Compliant
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MCP1804
Mfr	Microchip Technology
Product Status	Active
Dimensions	3.1 x 1.8 x 1.3mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Maximum Input Voltage	28 V
MSL	-
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Package Shape	RECTANGULAR
Operating Temperature	-40°C~85°C
Packaging	Cut Tape (CT)
Published	2009
Series	--
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
HTS Code	8542.39.00.01
Packing Method	TAPE AND REEL
Max Power Dissipation	250mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MCP1804
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	125μA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	28V
Output Voltage	12V
Output Type	Fixed
Max Output Current	150mA
Polarity	Positive
Number of Channels	1
Output Configuration	Positive
Output Current	0.15(Min) A
Current - Output	150mA
Quiescent Current	60μA
Control Features	Enable
Accuracy	2 %
Output Voltage 1	12V
Input Voltage (Min)	2(V)
Voltage - Output (Min/Fixed)	12V
Topology	LDO
Number of Regulators	1
Min Input Voltage	2V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	105μA
Voltage Dropout (Max)	0.85V @ 100mA
Max Input Voltage	28 V
PSRR	50dB (1kHz)
Seated Height-Max	1.45 mm
Dropout Voltage	120mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.65V
Min Output Voltage	12V
Output Voltage1-Max	12.24 V
Output Voltage1-Min	11.76 V
Regulator Type	Low Dropout Voltage
Voltage Tolerance-Max	2%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.85 V
Input Voltage Absolute-Max	30 V
Nominal Output Voltage	12V
Output Voltage Accuracy	�2 %
Adjustability	FIXED
Line Regulation	0.3%/V
Output Voltage1-Nom	12 V
Load Regulation	175mV
Input Voltage	28(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	0.115 mA
Height	1.3mm
Length	3.1mm
Width	1.8mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MCP1804T-C002I/OT Product Details

MCP1804T-C002I/OT Overview

A Cut Tape (CT) case is used to deliver this IC regulator. This voltage regulator IC comes in a SC-74A, SOT-753 case. On the regulater IC chip, there are a total of 5 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~85°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 150mA. A total of 5 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 5 pins on the chip. As an FYI, this IC voltage regulator has the basic part number MCP1804. This device is regulated with the Low Dropout Voltage type of regulator. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 150mA. It operates in the 60μA Quiescent Current state. This model is a part of the -- Series and is of high quality. If the temperature is below 85 °C, it is recommended that you utilize this feature. It is recommended that the chip be operated at a temperature no lower than -40 °C operating temperature. Each of these 1 channels performs a specific task to keep the system functioning.
