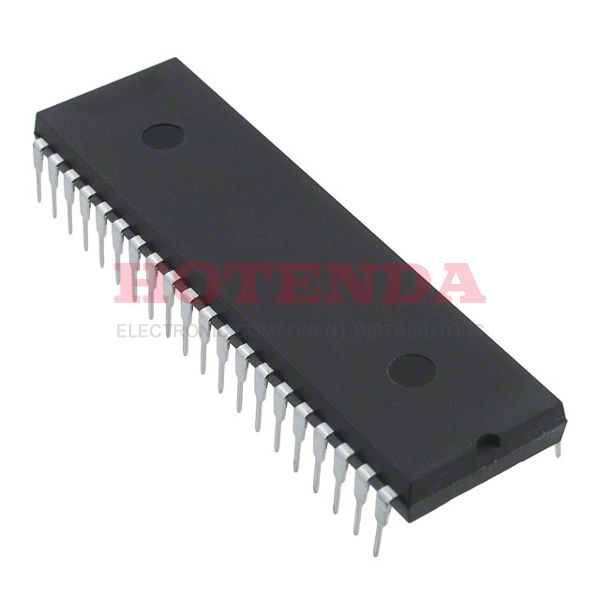

DSPIC30F4013-20E/P Overview
The package has a 40-DIP (0.600, 15.24mm) shape. With 30 I/Os, it's pretty good. The Microcontroller's mounting type is Through Hole and this IC chip has the following features. As the name implies, this Microcontroller is based on the 16-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~125°C TA range are measured by this Microcontroller. The dsPIC™ 30F series is comprised of this electrical component. The electronic part has a program memory size of 48KB 16K x 24. There's a dsPIC Core Processor inside. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 40 terminations on the IC chip. 16-bits are the size of the data that comes with MCU. A 5V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has NO DMA channels. Its memory size is 48kB. It is possible to find alternatives to the base part number DSPIC30F4013 by using the part number search tool. An effective performance can be achieved at a frequency of 20MHz. There are a total of YES channels in the device. It is possible to access the 40 pins on the chip. In total, it has 5 timers and counters in it. A total of 40 pins are included in the package. As an example, there is a feature called ALSO OPERATES AT 3V MINIMUM SUPPLY AT 10 MHZ to name only a few. As far as UART channels are concerned, it has 2. The ADC channels on this device total 13 in number. It has a set of 1 A/D converters on board the device. A chip with 16 bits has 16 bits in total. A total of 4 PWM channels are being used by the device.
DSPIC30F4013-20E/P Features
40-DIP (0.600, 15.24mm) package
Mounting type of Through Hole
DSPIC30F4013-20E/P Applications
There are a lot of Microchip Technology
DSPIC30F4013-20E/P Microcontroller applications.
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
