Name: DSPIC33EP256MC204T-E/ML
Brand: Microchip Technology
SKU: DSPIC33EP256MC204T-E/ML
Availability: InStock

new-10%

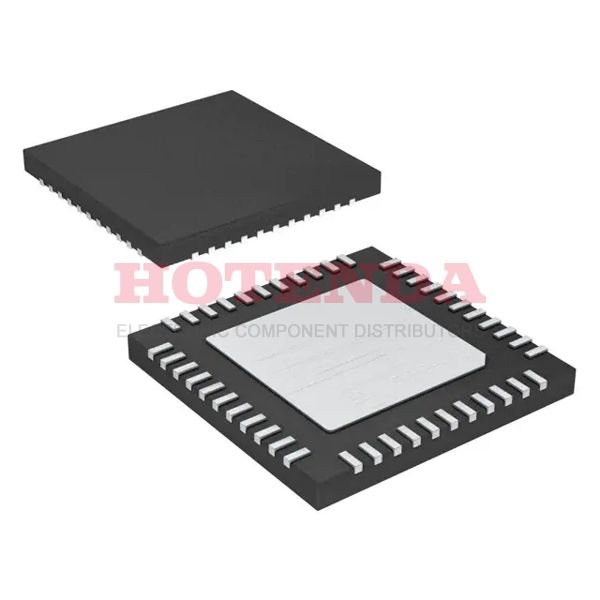

DSPIC33EP256MC204T-E/ML

Manufacturer part number:DSPIC33EP256MC204T-E/ML

Manufacturer:Microchip Technology

Description:256KB 85.5K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP256MC204 44 Pin 70MHz 3.3V 44-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EP256MC204T-E/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-QFN (8x8)
Number of Terminals	44
Mounting Style	SMD/SMT
Data Converters	A/D 9x10b/12b
Package	Tape & Reel (TR)
Base Product Number	DSPIC33EP256MC204
Mfr	Microchip Technology
Product Status	Obsolete
Qualification	AEC-Q100
Number of I/Os	35 I/O
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, UART
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	dsPIC
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	35
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	44
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.65 mm
Reach Compliance Code	compliant
Frequency	70MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP256MC204
Pin Count	44
JESD-30 Code	S-PQCC-N44
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3 V
Temperature Grade	AUTOMOTIVE
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	35
Speed	60 MHz
RAM Size	16K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 85.5K x 24
Connectivity	I2C, IrDA, LINbus, QEI, SPI, UART/USART
Supply Current-Max	60 mA
Bit Size	16
Data Converter	A/D 9x10b/12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	5
Product Type	DSP - Digital Signal Processors & Controllers
ROM (words)	87381
EEPROM Size	--
On Chip Program ROM Width	24
Format	FLOATING-POINT
RAM (words)	16384
RAM (bytes)	32768
ROM Programmability	FLASH
Number of Cores	1 Core
Product	DSCs
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Length	8mm
Height Seated (Max)	1mm
Width	8 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

DSPIC33EP256MC204T-E/ML Product Details

DSPIC33EP256MC204T-E/ML Overview

44-VQFN Exposed Pad-packages are available. There are 35 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the Automotive, AEC-Q100, dsPIC™ 33EP series. This program memory has a size of 256KB 85.5K x 24, which indicates what the size of the program memory is. dsPIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 44 terminations on MCU chip. You get a 16-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 256kB. The base part number DSPIC33EP256MC204 provides alternatives. This device is extremely efficient when operated at a frequency of 70MHz. Using the PWM channel YES, the device works with the motor. In this chip, 44 pins can be accessed. Using the timer/counter system, it has 5 timers/counters. It has 44 pins in total.
