Name: ATTINY167-A15XD
Brand: Microchip Technology
SKU: ATTINY167-A15XD
Availability: InStock

new-10%

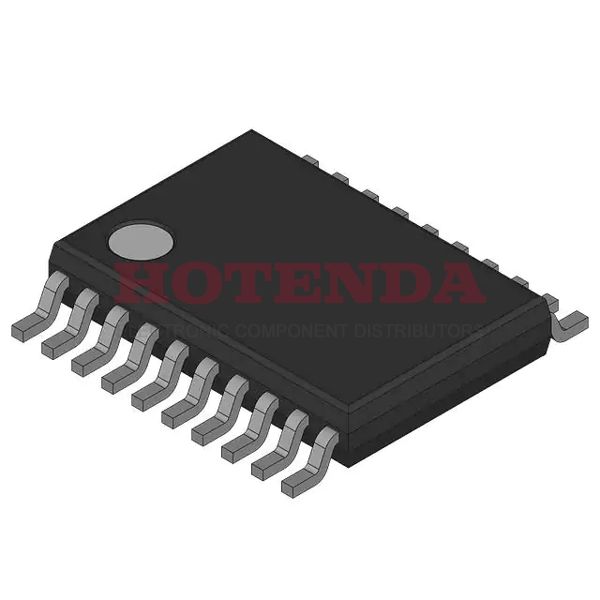

ATTINY167-A15XD

Manufacturer part number:ATTINY167-A15XD

Manufacturer:Microchip Technology

Description:16KB 8K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATtiny Series ATTINY167 20 Pin 16MHz 5V 20-TSSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:ATTINY167-A15XD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	20
Supplier Device Package	20-TSSOP
Number of Terminals	20
Mounting Style	SMD/SMT
Interfaces	2-Wire/SPI/USI
Data Converters	A/D 11x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATTINY167
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Number of I/Os	16 I/O
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 40 C
Interface Type	LIN, SPI, UART, USI
Operating Temperature	-40°C~150°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATtiny
Published	2007
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	5V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	ATTINY167
JESD-30 Code	R-PDSO-G20
Supply Voltage-Max (Vsup)	5.5V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	4.5V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	16
Speed	16MHz
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 8K x 16
Connectivity	I2C, LINbus, SPI, UART/USART, USI
Data Converter	A/D 11x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Seated Height-Max	1.1 mm
EEPROM Size	512 x 8
Screening Level	AEC-Q100; TS 16949
Device Core	AVR
Length	6.5mm
Height Seated (Max)	1.1mm
Width	4.4 mm
RoHS Status	ROHS3 Compliant

ATTINY167-A15XD Product Details

ATTINY167-A15XD Overview

This Microcontroller comes in a 20-TSSOP (0.173, 4.40mm Width) package. This Microcontroller has 16 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~150°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, AVR® ATtiny Series. The size of the program memory of Microcontroller is 16KB 8K x 16. MCU is powered by AVR Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 20 terminals. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 16kB memory size. You can find alternatives through the base part number ATTINY167. MCU's frequency is 16MHz. The device works in NO PWM channels. The pin number of the component remains 20.
