Name: DSPIC33EP128GM710-H/BG
Brand: Microchip Technology
SKU: DSPIC33EP128GM710-H/BG
Availability: InStock

new-10%

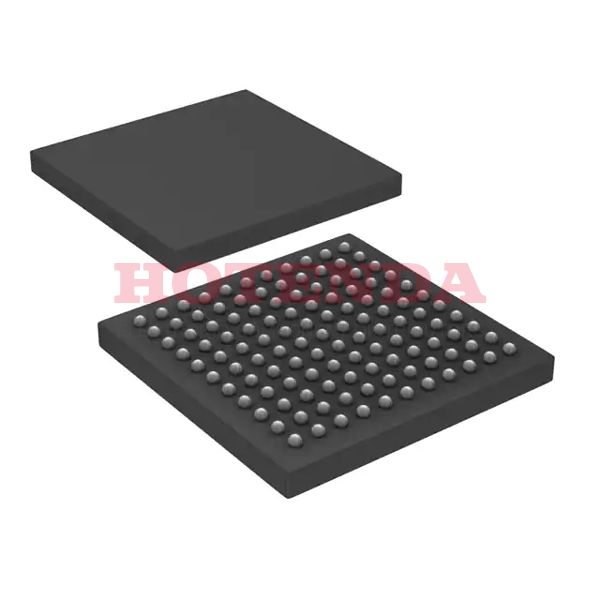

DSPIC33EP128GM710-H/BG

Manufacturer part number:DSPIC33EP128GM710-H/BG

Manufacturer:Microchip Technology

Description:128KB 43K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP128GM710 3.3V 121-TFBGA

Case Package:SOT-23

Datasheet:DSPIC33EP128GM710-H/BG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Mounting Type	Surface Mount
Package / Case	121-TFBGA
Surface Mount	YES
Supplier Device Package	121-TFBGA (10x10)
Number of Terminals	121
Data Converters	A/D 49x10b/12b
Package	Tray
Base Product Number	DSPIC33EP128GM710
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~150°C TA
Packaging	Tray
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2013
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	121
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Base Part Number	DSPIC33EP128GM710
JESD-30 Code	S-PBGA-B121
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	85
Speed	--
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	--
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT
Clock Frequency	60MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	128KB 43K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, QEI, SPI, UART/USART
Supply Current-Max	60 mA
Bit Size	16
Data Converter	A/D 49x10b/12b
Data Bus Width	16b
Seated Height-Max	1.2 mm
EEPROM Size	--
On Chip Program ROM Width	8
Boundary Scan	YES
Low Power Mode	YES
Screening Level	TS 16949
Format	FLOATING-POINT
Integrated Cache	NO
RAM (words)	16000
Number of Timers	21
ROM Programmability	FLASH
Number of External Interrupts	5
Barrel Shifter	YES
Internal Bus Architecture	MULTIPLE
On Chip Data RAM Width	8
Number of DMA Channels	4
Length	10mm
Height Seated (Max)	1.2mm
Width	10 mm
RoHS Status	ROHS3 Compliant

DSPIC33EP128GM710-H/BG Product Details

DSPIC33EP128GM710-H/BG Overview
