Name: SPC564A80L7CFCR
Brand: STMicroelectronics
SKU: SPC564A80L7CFCR
Availability: InStock

new-10%

SPC564A80L7CFCR

Manufacturer part number:SPC564A80L7CFCR

Manufacturer:STMicroelectronics

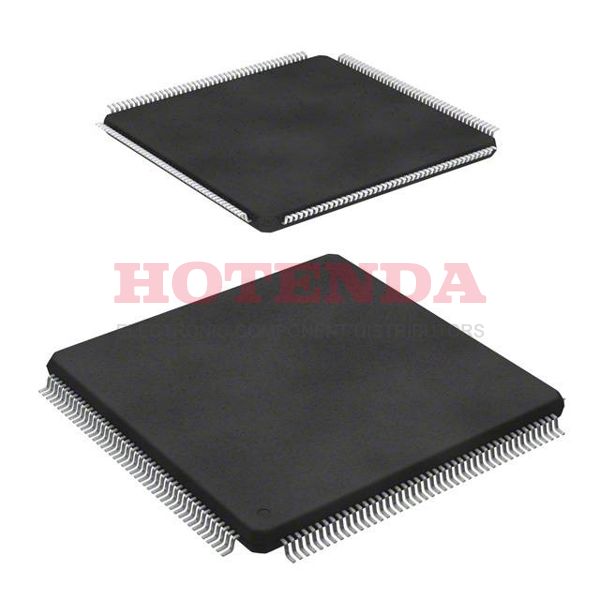

Description:4MB 4M x 8 FLASH e200z4 32-Bit Microcontroller SPC56 Series SPC564A80 176 Pin 80MHz 1.2V 176-LQFP

Case Package:SOT-23

Datasheet:SPC564A80L7CFCR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Mounting Type	Surface Mount
Package / Case	176-LQFP
Surface Mount	YES
Number of Pins	176
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	SPC56
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	176
ECCN Code	3A991.A.2
Terminal Finish	Tin (Sn)
Max Power Dissipation	1.5W
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Frequency	80MHz
Base Part Number	SPC564A80
Pin Count	176
Supply Voltage-Max (Vsup)	1.32V
Power Supplies	1.23.35V
Interface	CAN, EBI/EMI, LIN, SCI, SPI
Memory Size	4MB
Oscillator Type	Internal
Number of I/O	118
RAM Size	192K x 8
Voltage - Supply (Vcc/Vdd)	1.14V~1.32V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	e200z4
Peripherals	DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	4MB 4M x 8
Connectivity	CANbus, EBI/EMI, LINbus, SCI, SPI
Bit Size	32
Data Converter	A/D 34x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	4
Address Bus Width	32
On Chip Program ROM Width	32
Number of Programmable I/O	120
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SPC564A80L7CFCR Product Details

SPC564A80L7CFCR Overview

This Microcontroller comes in a 176-LQFP package. This Microcontroller has 118 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in SPC56 Series. The size of the program memory of Microcontroller is 4MB 4M x 8. MCU is powered by e200z4 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 176 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.2V supply voltage. MCU chip has YES DMA channels. The part owns 4MB memory size. You can find alternatives through the base part number SPC564A80. MCU's frequency is 80MHz. The device works in YES PWM channels. The pin number of the component remains 176. It has 4 timers/counters. It counts 176 pins. It programs in 120 Programmable I/O.
