Name: ATXMEGA128D4-MNR
Brand: Microchip Technology
SKU: ATXMEGA128D4-MNR
Availability: InStock

new-10%

ATXMEGA128D4-MNR

Manufacturer part number:ATXMEGA128D4-MNR

Manufacturer:Microchip Technology

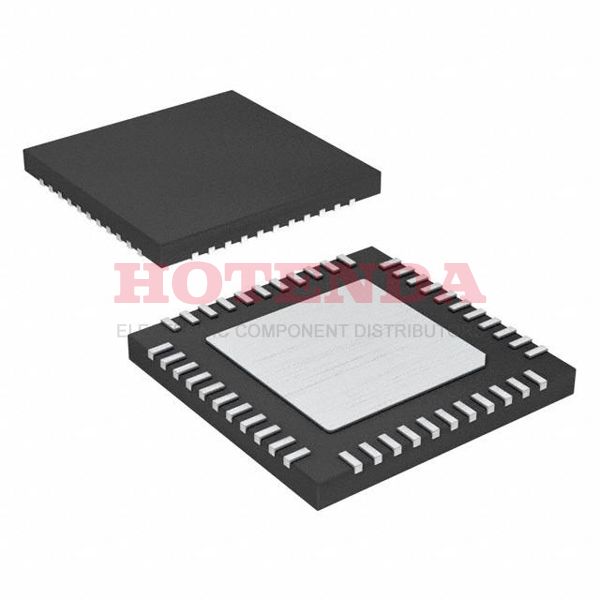

Description:128KB 64K x 16 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® D4 Series ATXMEGA128 44 Pin 32MHz 44-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATXMEGA128D4-MNR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-VFQFN Exposed Pad
Number of Pins	44
Supplier Device Package	44-VQFN (7x7)
Data Converters	A/D 12x12b
Package	Tape & Reel (TR)
Base Product Number	ATXMEGA128
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	AVR® XMEGA® D4
Published	2014
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Frequency	32MHz
Base Part Number	ATXMEGA128
Operating Supply Voltage	3.3V
Interface	I2C, IrDA, SPI, UART, USART
Max Supply Voltage	3.6V
Min Supply Voltage	1.6V
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	34
Speed	32MHz
RAM Size	8K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	128KB 64K x 16
Connectivity	I2C, IrDA, SPI, UART/USART
Data Converter	A/D 12x12b
Watchdog Timer	Yes
Number of Timers/Counters	4
Core Architecture	AVR
EEPROM Size	2K x 8
Max Frequency	32MHz
Number of Programmable I/O	34
RoHS Status	ROHS3 Compliant

ATXMEGA128D4-MNR Product Details

ATXMEGA128D4-MNR Overview

There is a 44-VFQFN Exposed Pad package available. The board has 34 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8/16-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~105°C TA is the temperature range at which this Microcontroller operates. AVR® XMEGA® D4-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 128KB 64K x 16. Powered by a AVR Core processor. This IC part has a memory size of 128kB. There are a number of alternatives to the base part number ATXMEGA128 that you can find. Performing well when operated at frequency 32MHz can be achieved. On the chip, there are 44 pins that can be accessed. It comes with 4 timers/counters that can be set up. FLASH memory is one of the features of this equipment. The CPU is based on AVR cores. There are 34 Programmable I/Os on this computer.
