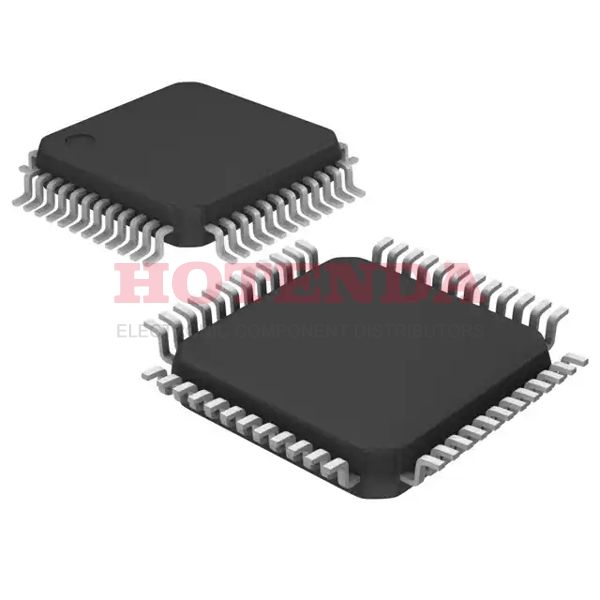

Name: AT91SAM7S32-AU-001
Brand: Microchip Technology
SKU: AT91SAM7S32-AU-001
Availability: InStock

new-10%

AT91SAM7S32-AU-001

Manufacturer part number:AT91SAM7S32-AU-001

Manufacturer:Microchip Technology

Description:32KB 32K x 8 FLASH ARM7® 16/32-Bit Microcontroller SAM7S Series AT91SAM7S32 48 Pin 55MHz 48-LQFP

Case Package:SOT-23

Datasheet:AT91SAM7S32-AU-001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-LQFP
Surface Mount	YES
Number of Pins	48
Supplier Device Package	48-LQFP (7x7)
Number of Terminals	48
Data Converters	A/D 8x10b
Package	Tray
Base Product Number	AT91SAM7S32
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Atmel Corporation
Number of I/O Lines	21
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM7S
Published	1997
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Termination	SMD/SMT
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5 mm
Reach Compliance Code	unknown
Frequency	55MHz
Base Part Number	AT91SAM7S32
Pin Count	48
JESD-30 Code	S-PQFP-G48
Qualification Status	Not Qualified
Power Supplies	1.8,3.3 V
Temperature Grade	INDUSTRIAL
Interface	I2C, I2S, SPI, UART, USART, USB
Max Supply Voltage	3.6V
Min Supply Voltage	1.65V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	21
Speed	55MHz
RAM Size	8K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.65V~1.95V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	32
Core Processor	ARM7®
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, SPI, SSC, UART/USART
Supply Current-Max	3 mA
Bit Size	32
Data Converter	A/D 8x10b
Access Time	55 μs
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.6 mm
Number of Timers/Counters	3
Density	256 kb
ROM (words)	32768
Core Architecture	ARM
EEPROM Size	--
CPU Family	ARM7
Max Frequency	55MHz
Number of Programmable I/O	32
Number of UART Channels	1
RAM (bytes)	8192
ROM Programmability	FLASH
Number of PWM Channels	4
Length	7mm
Width	7 mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
