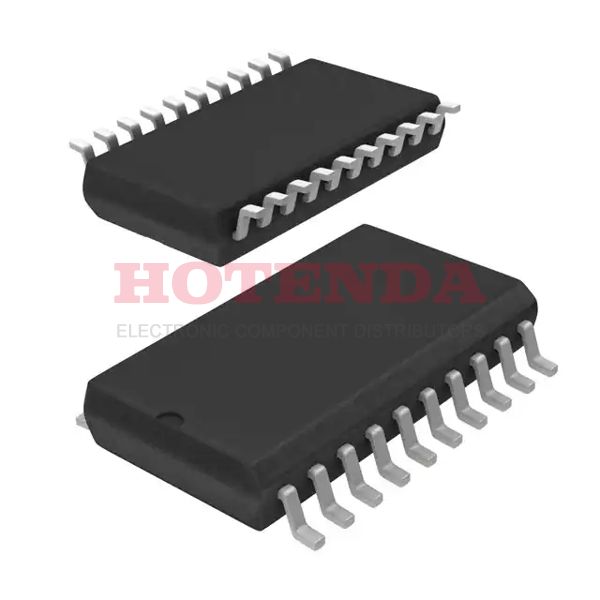

ATTINY2313V-10SUR Description
The ATTINY2313V-10SUR is a low-power 8-bit CMOS Microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny2313 achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the arithmetic logic unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The ATtiny2313 provides 2kB of in-system programmable flash, 128byte EEPROM and 128byte SRAM. The device supports a throughput of 10MIPS at 10MHz.
ATTINY2313V-10SUR Features
Full duplex USART
Four PWM channels
Fully static operation
On-chip analog comparator
Internal calibrated oscillator
USI-universal serial interface
Enhanced power-on reset circuit
Utilizes the AVR RISC architecture
DebugWIRE on-chip debug system
Up to 20MIPS throughput at 20MHz
In-system programmable via SPI port
External and internal interrupt sources
32 x 8 General purpose working registers
Programmable brown-out detection circuit
Low-power idle, power-down and standby modes
Programmable watchdog timer with on-chip oscillator
120 Powerful instructions most single clock cycle execution
One 8-bit timer/counter with prescaler and two PWM channels
One 16-bit timer/counter with separate prescaler, compare and capture mode
