Name: R5F104JGAFA#V0
Brand: Renesas Electronics America
SKU: R5F104JGAFA#V0
Availability: InStock

new-10%

R5F104JGAFA#V0

Manufacturer part number:R5F104JGAFA#V0

Manufacturer:Renesas Electronics America

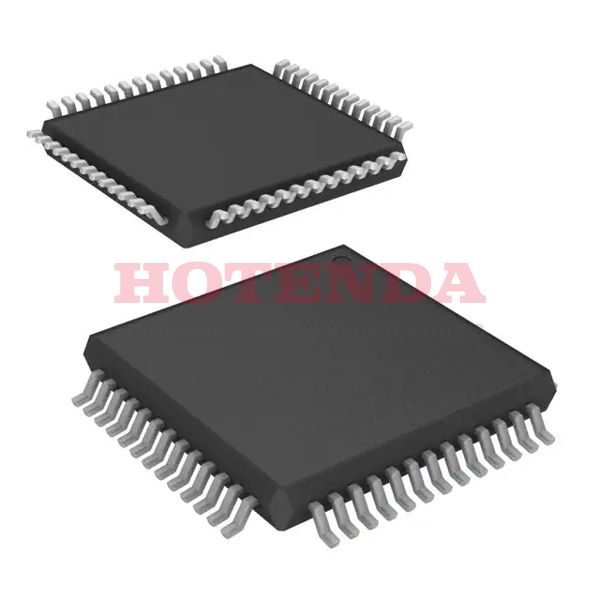

Description:128KB 128K x 8 FLASH RL78 16-Bit Microcontroller RL78/G14 Series R5F104 52 Pin 32MHz 5V 52-LQFP

Case Package:SOT-23

Datasheet:R5F104JGAFA#V0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	52-LQFP
Number of Pins	52
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	RL78/G14
Published	2013
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	52
Additional Feature	ALSO OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHZ
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	32MHz
Base Part Number	R5F104
Pin Count	52
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	1.8/5V
Interface	I2C, LIN, SCI, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	38
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	1.6V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	RL78
Peripherals	DMA, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	128KB 128K x 8
Connectivity	CSI, I2C, LINbus, UART/USART
Supply Current-Max	8.7mA
Bit Size	16
Data Converter	A/D 12x8/10b; D/A 2x8b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	2
EEPROM Size	8K x 8
On Chip Program ROM Width	8
Length	10mm
Height Seated (Max)	1.7mm
Width	10mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

R5F104JGAFA#V0 Product Details

R5F104JGAFA#V0 Overview

It comes in a 52-LQFP package. It has a number of 38I/Os. The Mounting Type of the device is Surface Mount. It is based on the 16-Bit. The It?ˉs Program Memory Type is FLASH. The device runs in -40??C~85??C TA Operating Temperature. It runs in RL78/G14 Series.

R5F104JGAFA#V0 Features

RL78/G14 series
Base part number of R5F104
Additional features of ALSO OPERATES AT 1.6 V MINIMUM SUPPLY AT 4 MHZ
52 Terminals
Based on the 16-Bit
Comes with 52 Pins

R5F104JGAFA#V0 Applications

There are a lot of Renesas Electronics America R5F104JGAFA#V0 Microcontroller applications. R5F104JGAFA#V0 MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
