Name: ATTINY1606-SFR
Brand: Microchip Technology
SKU: ATTINY1606-SFR
Price: 1.02000 USD
Availability: InStock

new-10%

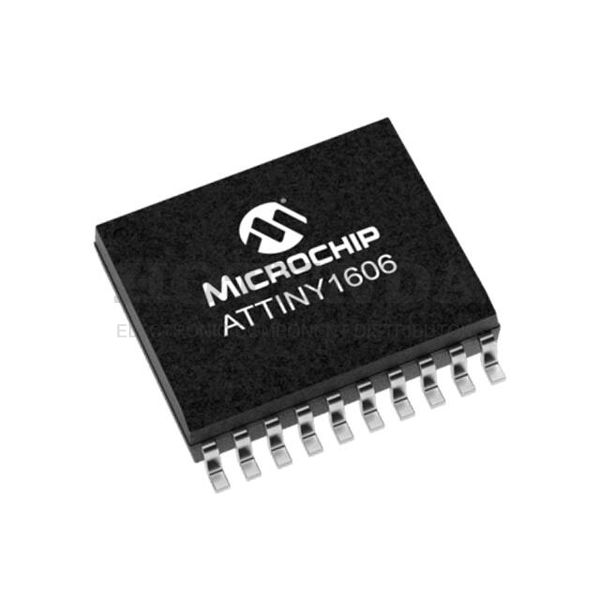

ATTINY1606-SFR

Manufacturer part number:ATTINY1606-SFR

Manufacturer:Microchip Technology

Description:16KB 16K x 8 FLASH AVR 8-Bit Microcontroller AVR® ATtiny Series 5V 20-SOIC (0.295, 7.50mm Width)

Case Package:SOT-23

Datasheet:ATTINY1606-SFR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Supplier Device Package	20-SOIC
Number of Terminals	20
Mounting Style	SMD/SMT
Number of I/Os	18 I/O
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, UART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATTINY1606
Mfr	Microchip Technology
Data Converters	A/D 12x10b
Product Status	Active
Package Shape	RECTANGULAR
Number of I/O Lines	18
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATtiny
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
Additional Feature	2.7V MIN @ 10MHZ AND 1.8V MIN @5MHZ FREQUENCY AVAILABLE
Subcategory	Microcontrollers - MCU
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	1.27mm
Reach Compliance Code	compliant
JESD-30 Code	R-PDSO-G20
Supply Voltage-Max (Vsup)	5.5V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	4.5V
Oscillator Type	Internal
Number of I/O	18
Speed	20MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	20MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 12x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8 bit
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	2.65 mm
Product Type	8-bit Microcontrollers - MCU
ROM (words)	8192
EEPROM Size	256 x 8
On Chip Program ROM Width	16
CPU Family	AVR RISC
Low Power Mode	YES
RAM (words)	1024
RAM (bytes)	1024
Number of ADC Channels	12 Channel
Number of Timers	3
ROM Programmability	FLASH
On Chip Data RAM Width	8
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Length	12.8mm
Height Seated (Max)	2.65mm
Width	7.5mm
RoHS Status	ROHS3 Compliant

ATTINY1606-SFR Product Details

ATTINY1606-SFR Overview

Packaged in a 20-SOIC (0.295, 7.50mm Width) format. A total of 18 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 8-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~125°C TA. A AVR® ATtiny series electrical component is used in this application. This program has a program memory of 16KB 16K x 8 bytes, which is the size of the program. With a AVR Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 20 terminations on the IC chip, which means there are 20 terminations on the integrated circuit chip. In addition, MCU chip comes with a 8-bit size. Microcontroller chip has outputs of 5V volts. The system has NO channels for DMA communication. This MCU Chip uses YES PWM channels to operate. The AVR RISC CPU family is embedded in the device, so it can handle a wide range of operations. It runs on a 20MHz clock. As an example, one of the additional features that you can use is 2.7V MIN @ 10MHZ AND 1.8V MIN @5MHZ FREQUENCY AVAILABLE. It consists of 12 Channel channels in total for the ADC. An integrated circuit with 3 bits has a total of 3 bits.
