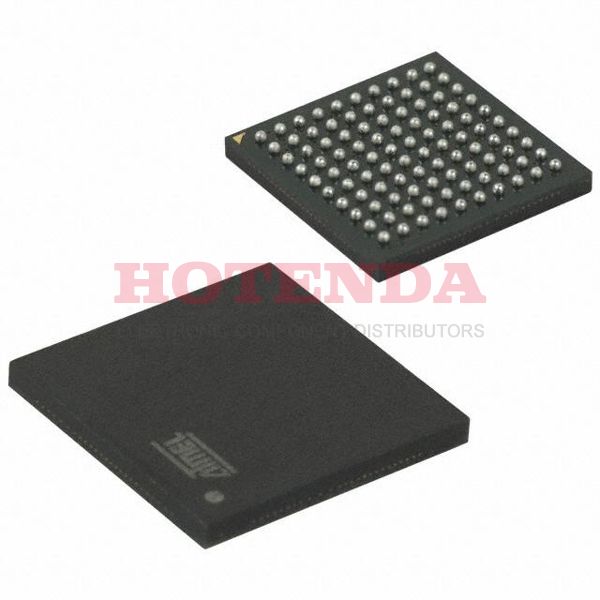

Name: ATSAMV71N20B-CBT
Brand: Microchip Technology
SKU: ATSAMV71N20B-CBT
Price: 13.70000 USD
Availability: InStock

new

ATSAMV71N20B-CBT

Manufacturer part number:ATSAMV71N20B-CBT

Manufacturer:Microchip Technology

Description:1MB 1M x 8 FLASH ARM® Cortex®-M7 32-Bit Microcontroller Automotive, AEC-Q100, SAM V71 Series ATSAMV71N 100-TFBGA

Case Package:SOT-23

Datasheet:ATSAMV71N20B-CBT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Surface Mount	YES
Supplier Device Package	100-TFBGA (9x9)
Number of Terminals	100
Mounting Style	SMD/SMT
RoHS	Non-Compliant
Data Converters	A/D 10x12b, D/A 2x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAMV71
Mfr	Microchip Technology
Product Status	Active
DAC Resolution	12 bit
Qualification	AEC-Q100
Number of I/Os	75 I/O
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Interface Type	CAN, Ethernet, I2S, ISI, SD, SPI, UART, USART, USB
Manufacturer	Microchip
Brand	Microchip Technology
Package Shape	SQUARE
Number of I/O Lines	75
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, SAM V71
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A001.A.3
Additional Feature	ONE ADC CHANNEL IS RESERVED FOR INTERNAL TEMPERATURE SENSOR
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	BOTTOM
Terminal Form	BALL
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Base Part Number	ATSAMV71N
JESD-30 Code	S-PBGA-B100
Supply Voltage-Max (Vsup)	1.32V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.2V
Oscillator Type	Internal
Number of I/O	75
Speed	300MHz
RAM Size	384K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M7
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency	150MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	1MB 1M x 8
Connectivity	CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32 bit
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.1 mm
Product Type	ARM Microcontrollers - MCU
EEPROM Size	--
Screening Level	AEC-Q100; TS 16949
Number of ADC Channels	10 Channel
ROM Programmability	FLASH
Product	MCU+FPU
Product Category	ARM Microcontrollers - MCU
Length	9mm
Height Seated (Max)	1.1mm
Width	9mm
RoHS Status	ROHS3 Compliant

ATSAMV71N20B-CBT Product Details

ATSAMV71N20B-CBT Overview

Packaged in a 100-TFBGA format, this MCU is available in a compact size. There are 75 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 32-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The Automotive, AEC-Q100, SAM V71 series includes this electrical component. There is 1MB 1M x 8 bytes of program memory in MCU, which corresponds to the size of the program. With a ARM® Cortex®-M7 Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 100 terminations were applied to the IC chip. 32-bits are used in Microcontroller. Currently, MCU chip has YES DMA channels. Alternatives can be found by looking at the base part number ATSAMV71N. There are YES PWM channels on the device. The clock function of this device is based on a 150MHz-frequency. As a few examples, there are additional features like ONE ADC CHANNEL IS RESERVED FOR INTERNAL TEMPERATURE SENSOR that are available in the software. A total of 10 Channel ADC channels are present in this device.
