Name: ATSAMD21J16A-CUT
Brand: Microchip Technology
SKU: ATSAMD21J16A-CUT
Availability: InStock

new-10%

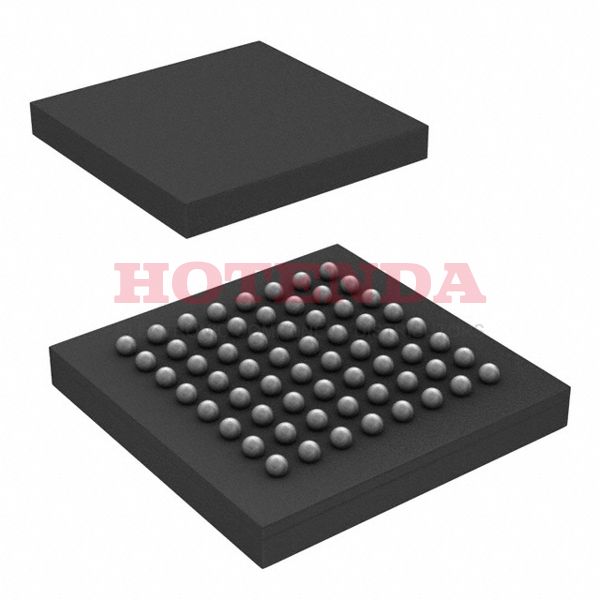

ATSAMD21J16A-CUT

Manufacturer part number:ATSAMD21J16A-CUT

Manufacturer:Microchip Technology

Description:64KB 64K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D21J Series ATSAMD21J16 64 Pin 48MHz 3.3V 64-UFBGA

Case Package:SOT-23

Datasheet:ATSAMD21J16A-CUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-UFBGA
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-UFBGA (5x5)
Number of Terminals	64
Interfaces	I2C/I2S/SPI/UART/USA
Data Converters	A/D 20x12b, D/A 1x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAMD21
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	53
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM D21J
Published	2015
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	48MHz
Base Part Number	ATSAMD21J16
JESD-30 Code	S-PBGA-B64
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.63V
Temperature Grade	INDUSTRIAL
Interface	I2C, I2S, LIN, SPI, UART, USART, USB
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	52
Speed	48MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 20x12b; D/A 1x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.65 mm
Number of Timers/Counters	8
Core Architecture	ARM
EEPROM Size	--
ROM Programmability	FLASH
Device Core	ARM Cortex M0+
Length	5mm
Height Seated (Max)	0.65mm
Width	5 mm
RoHS Status	ROHS3 Compliant

ATSAMD21J16A-CUT Product Details

ATSAMD21J16A-CUT Overview

This Microcontroller comes in a 64-UFBGA package. This Microcontroller has 52 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in SAM D21J Series. The size of the program memory of Microcontroller is 64KB 64K x 8. MCU is powered by ARM® Cortex®-M0+ Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 64 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. The part owns 64kB memory size. You can find alternatives through the base part number ATSAMD21J16. MCU's frequency is 48MHz. The device works in YES PWM channels. The pin number of the component remains 64. It has 8 timers/counters. It has a ARM core architecture integrated into it.
