Name: ATMEGA8HVA-4CKUR
Brand: Microchip Technology
SKU: ATMEGA8HVA-4CKUR
Availability: InStock

new-10%

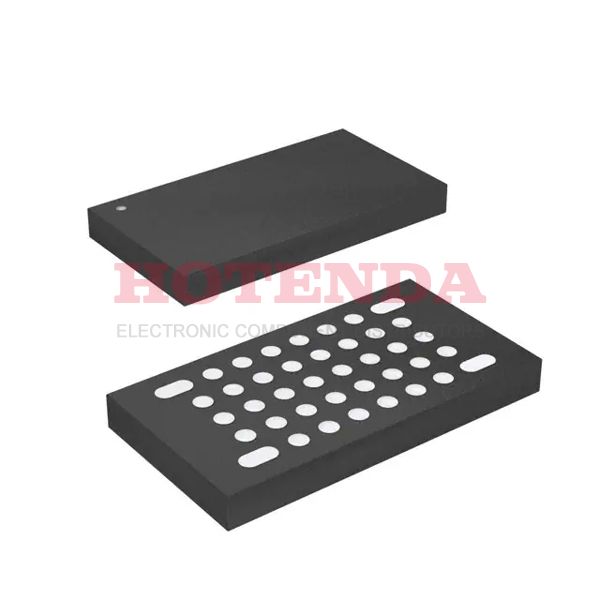

ATMEGA8HVA-4CKUR

Manufacturer part number:ATMEGA8HVA-4CKUR

Manufacturer:Microchip Technology

Description:8KB 4K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA8HVA 36 Pin 4MHz 36-WFLGA

Case Package:SOT-23

Datasheet:ATMEGA8HVA-4CKUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	36-WFLGA
Number of Pins	36
Supplier Device Package	36-LGA (6.5x3.5)
Data Converters	A/D 5x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA8HVA
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-20°C~85°C TA
Packaging	Cut Tape (CT)
Series	AVR® ATmega
Published	2008
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	85°C
Min Operating Temperature	-20°C
Frequency	4MHz
Base Part Number	ATMEGA8HVA
Interface	SPI
Max Supply Voltage	9V
Min Supply Voltage	1.8V
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	7
Speed	4MHz
RAM Size	512 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.8V~9V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 4K x 16
Connectivity	SPI
Data Converter	A/D 5x12b
Data Bus Width	8b
Core Architecture	AVR
EEPROM Size	256 x 8
Max Frequency	4MHz
RoHS Status	ROHS3 Compliant

ATMEGA8HVA-4CKUR Product Details

ATMEGA8HVA-4CKUR Overview

There is a 36-WFLGA package available. The board has 7 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -20°C~85°C TA is the temperature range at which this Microcontroller operates. AVR® ATmega-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 8KB 4K x 16. Powered by a AVR Core processor. This IC part has a memory size of 8kB. There are a number of alternatives to the base part number ATMEGA8HVA that you can find. Performing well when operated at frequency 4MHz can be achieved. On the chip, there are 36 pins that can be accessed. FLASH memory is one of the features of this equipment. The CPU is based on AVR cores.
