Name: PIC16C924-04I/L
Brand: Microchip Technology
SKU: PIC16C924-04I/L
Availability: InStock

new-10%

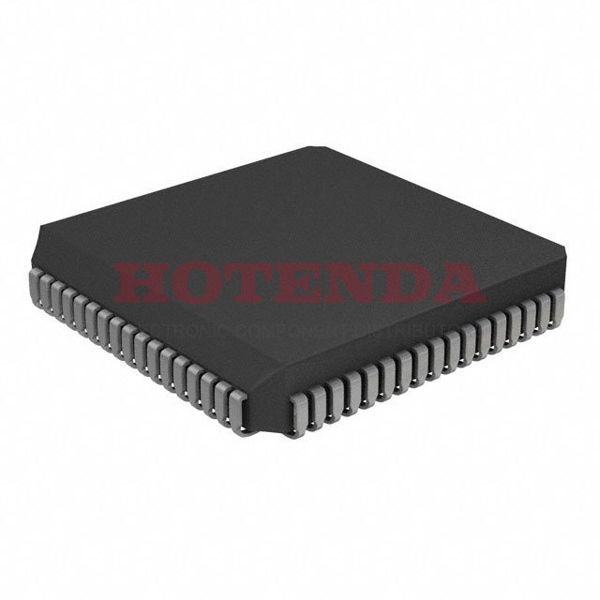

PIC16C924-04I/L

Manufacturer part number:PIC16C924-04I/L

Manufacturer:Microchip Technology

Description:7KB 4K x 14 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16C924 68 Pin 4MHz 5V 68-LCC (J-Lead)

Case Package:SOT-23

Datasheet:PIC16C924-04I/L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	68-LCC (J-Lead)
Surface Mount	YES
Number of Pins	68
Supplier Device Package	68-PLCC (24.23x24.23)
Interfaces	I2C/SPI
Data Converters	A/D 5x8b
Package	Tube
Base Product Number	PIC16C924
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1997
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	68
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Supply Voltage	5V
Terminal Pitch	1.27mm
Frequency	4MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16C924
Pin Count	68
Operating Supply Voltage	5V
Supply Voltage-Max (Vsup)	6V
Power Supplies	5V
Interface	I2C, SPI
Memory Size	7kB
Oscillator Type	External
Number of I/O	25
Speed	4MHz
RAM Size	176 x 8
Voltage - Supply (Vcc/Vdd)	4V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	LCD, POR, PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	7KB 4K x 14
Connectivity	I2C, SPI
Supply Current-Max	5mA
Bit Size	8
Data Converter	A/D 5x8b
Watchdog Timer	Yes
Access Time	4 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
ROM (words)	4096
EEPROM Size	--
On Chip Program ROM Width	14
CPU Family	PIC
Device Core	PIC
Height Seated (Max)	4.699mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16C924-04I/L Product Details

PIC16C924-04I/L Overview

It comes in a 68-LCC (J-Lead) package. It has a number of 25I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is OTP. The device runs in -40??C~85??C TA Operating Temperature. It runs in PIC? 16C Series.

PIC16C924-04I/L Features

PIC? 16C series
Base part number of PIC16C924
68 Terminals
Based on the 8-Bit
Comes with 68 Pins

PIC16C924-04I/L Applications

There are a lot of Microchip Technology PIC16C924-04I/L Microcontroller applications. PIC16C924-04I/L MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
