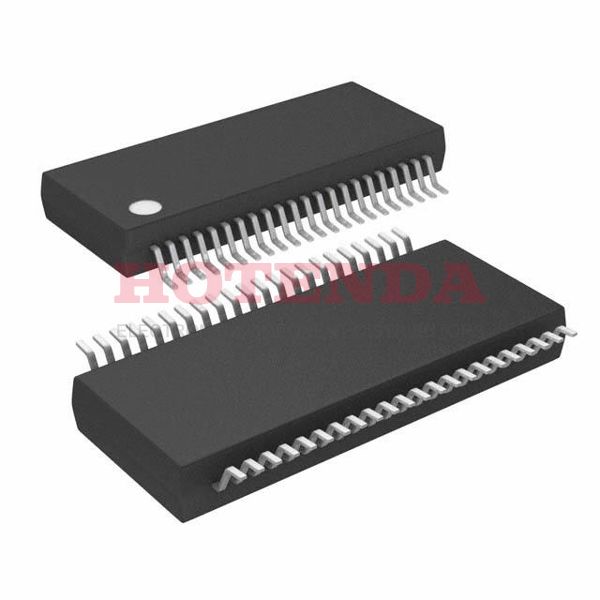

Name: ATMEGA32HVB-8X3
Brand: Microchip Technology
SKU: ATMEGA32HVB-8X3
Availability: InStock

new-10%

ATMEGA32HVB-8X3

Manufacturer part number:ATMEGA32HVB-8X3

Manufacturer:Microchip Technology

Description:32KB 16K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA32HVB 44 Pin 8MHz 44-TFSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:ATMEGA32HVB-8X3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-TFSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-TSSOP
Number of Terminals	44
Data Converters	A/D 7x12b
Package	Tray
Base Product Number	ATMEGA32
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Atmel Corporation
Number of I/O Lines	18
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	AVR® ATmega
Published	2010
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN Code	EAR99
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Frequency	8MHz
Base Part Number	ATMEGA32HVB
Pin Count	44
JESD-30 Code	R-PDSO-G44
Qualification Status	Not Qualified
Operating Supply Voltage	18V
Power Supplies	4/25 V
Temperature Grade	INDUSTRIAL
Interface	I2C, SPI
Max Supply Voltage	25V
Min Supply Voltage	4V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	17
Speed	8MHz
RAM Size	2K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	4V~25V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	POR, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	I2C, SPI
Supply Current-Max	5 mA
Bit Size	8
Data Converter	A/D 7x12b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	2
ROM (words)	16384
Core Architecture	AVR
EEPROM Size	1K x 8
On Chip Program ROM Width	16
CPU Family	AVR RISC
Max Frequency	8MHz
Number of Programmable I/O	17
RAM (bytes)	2048
Number of ADC Channels	8
ROM Programmability	FLASH
Number of I2C Channels	1
Number of SPI Channels	1
Can	0
Clock Speed	16
Flash Memory	32
Adc Channels	8
Adc Resolution	10
Device Core	AVR
Height	1.05mm
Length	11.1mm
Width	4.5mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ATMEGA32HVB-8X3 Product Details

ATMEGA32HVB-8X3 Overview

In a 44-TFSOP (0.173, 4.40mm Width) package, the MCU is available. 17 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. AVR® ATmega series components make up this electrical component. 32KB 16K x 16 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. This part works in a 8-bit manner. DMA channels number NO. 32kB is the memory size of the part. The base part number ATMEGA32HVB can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 8MHz. The device works in NO PWM channels. Located on the chip are 44 pins. The clock has 2 timers or counters on it. There are 44 pins on it. In this device, there is a AVR RISC CPU embedded within it. It has built-in FLASH memory. There is an integrated AVR core architecture in it. It programs in 17 Programmable I/O. A total of 8 channels of ADC are available on this device. There are 1 I2C channels included in the part, which has been designed for the purpose.
