Name: PIC18F1230T-I/ML
Brand: Microchip Technology
SKU: PIC18F1230T-I/ML
Availability: InStock

new-10%

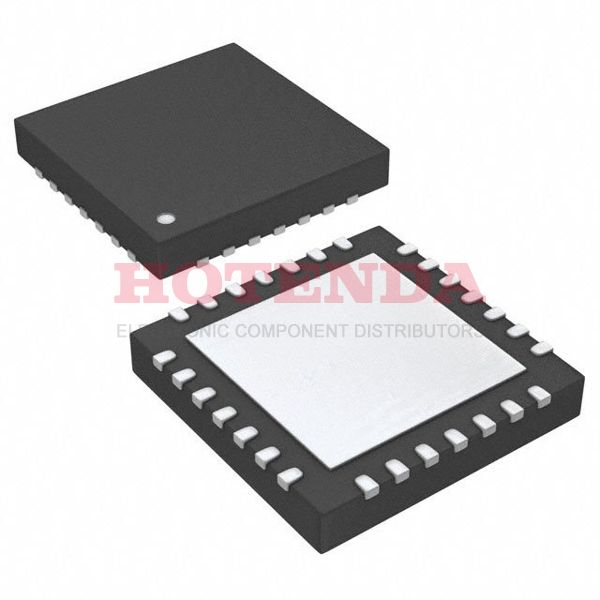

PIC18F1230T-I/ML

Manufacturer part number:PIC18F1230T-I/ML

Manufacturer:Microchip Technology

Description:4KB 2K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18F Series PIC18F1230 40MHz 5V 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18F1230T-I/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	28-QFN (6x6)
Data Converters	A/D 4x10b
Package	Tape & Reel (TR)
Base Product Number	PIC18F1230
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® 18F
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Finish	Matte Tin (Sn) - annealed
Max Power Dissipation	1W
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	40MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18F1230
Pin Count	28
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Interface	UART, USART
Memory Size	4kB
Oscillator Type	Internal
Number of I/O	16
Speed	40MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	4.2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	4KB 2K x 16
Connectivity	UART/USART
Supply Current-Max	40mA
Bit Size	8
Data Converter	A/D 4x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
EEPROM Size	128 x 8
On Chip Program ROM Width	16
CPU Family	PIC
Length	6mm
Height Seated (Max)	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC18F1230T-I/ML Product Details

PIC18F1230T-I/ML Overview

28-VQFN Exposed Pad-packages are available. There are 16 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the PIC® 18F series. This program memory has a size of 4KB 2K x 16, which indicates what the size of the program memory is. PIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 28 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 4kB. The base part number PIC18F1230 provides alternatives. This device is extremely efficient when operated at a frequency of 40MHz. Using the PWM channel YES, the device works with the motor. Using the timer/counter system, it has 2 timers/counters. It has 28 pins in total. In addition to this, the device is embedded with the the PIC CPU family.
