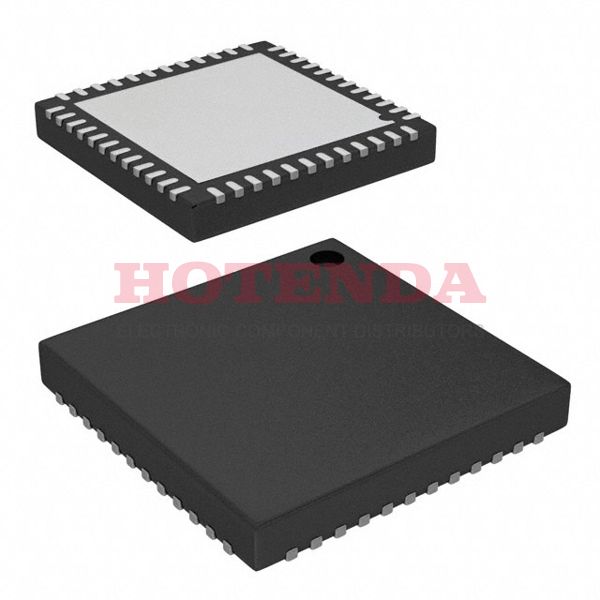

ATA6870N-PLQW-1 Overview
The package 48-VFQFN Exposed Pad is appropriate for battery instrument. This power management IC utilizes an analog IC POWER SUPPLY SUPPORT CIRCUIT. A total of 7 channels are available. 48 pins are on it. The package contains a Tape & Reel (TR) case. You can mount this electronic part by using Surface Mount. Surface Mount is in the way of this electronic component. The Battery Monitor functions are available. For the electric part to perform effectively, it should operate at a temperature around -40°C~85°C TA. This electronic part has a chemistry of Multi-Chemistry. A ATA6870 family is used in it. There is a maximum supply voltage (Vsup) of 30 V. A voltage greater than 6.9V must be present in Vsup (supply voltage). 30V is the operating supply voltage specified for this battery instrument. In this case, -- represents the series number of the battery protection IC. The transceiver ic can be supplied with a maximum of 5mA watts of current.
ATA6870N-PLQW-1 Features
Available in 48-VFQFN Exposed Pad Package
with 48 Pins
Mounting Type: Surface Mount
Battery Chemistry : Multi-Chemistry
Supply Voltage-Max (Vsup) : 30 V
Output Voltage at the range of 3.3V
ATA6870N-PLQW-1 Applications
There are a lot of Microchip Technology
ATA6870N-PLQW-1 Battery Management ICs applications.
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
