Name: AT91SAM7X128-CU
Brand: Microchip Technology
SKU: AT91SAM7X128-CU
Availability: InStock

new-10%

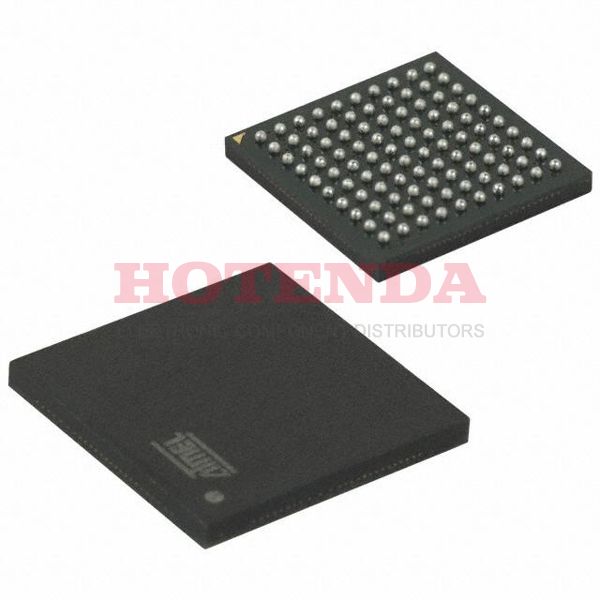

AT91SAM7X128-CU

Manufacturer part number:AT91SAM7X128-CU

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH ARM7® 16/32-Bit Microcontroller SAM7X Series AT91SAM7X128 1.8V 100-TFBGA

Case Package:SOT-23

Datasheet:AT91SAM7X128-CU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Surface Mount	YES
Supplier Device Package	100-TFBGA (9x9)
Number of Terminals	100
Data Converters	A/D 8x10b
Package	Tray
Base Product Number	AT91SAM7X128
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	60
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM7X
Published	2016
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A001.A.3
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.8V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	AT91SAM7X128
JESD-30 Code	S-PBGA-B100
Supply Voltage-Max (Vsup)	1.95V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.65V
Oscillator Type	Internal
Number of I/O	62
Speed	55MHz
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.65V~1.95V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM7®
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	50MHz
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	CANbus, Ethernet, I2C, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 8x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.1 mm
ROM (words)	131072
EEPROM Size	--
On Chip Program ROM Width	8
RAM (bytes)	32768
ROM Programmability	FLASH
Length	9mm
Height Seated (Max)	1.1mm
Width	9mm
RoHS Status	ROHS3 Compliant

AT91SAM7X128-CU Product Details

AT91SAM7X128-CU Overview

This Microcontroller comes in a 100-TFBGA package. This Microcontroller has 62 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16/32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in SAM7X Series. The size of the program memory of Microcontroller is 128KB 128K x 8. MCU is powered by ARM7® Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 100 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.8V supply voltage. MCU chip has YES DMA channels. You can find alternatives through the base part number AT91SAM7X128. The device works in YES PWM channels. It is at 50MHz clock frequency.
