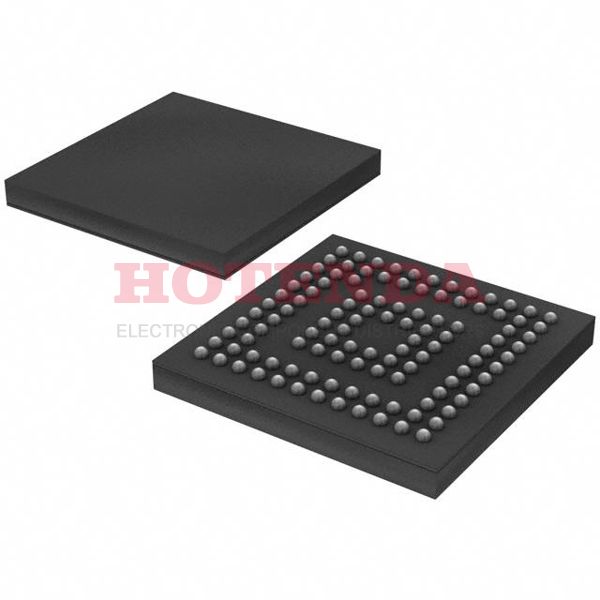

Name: MSP430F6636IZQWT
Brand: Rochester Electronics, LLC
SKU: MSP430F6636IZQWT
Availability: InStock

new-10%

MSP430F6636IZQWT

Manufacturer part number:MSP430F6636IZQWT

Manufacturer:Rochester Electronics, LLC

Description:128KB 128K x 8 FLASH CPUXV2 16-Bit Microcontroller MSP430F6xx Series 113-VFBGA

Case Package:SOT-23

Datasheet:MSP430F6636IZQWT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	113-VFBGA
Supplier Device Package	113-BGA Microstar Junior (7x7)
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	MSP430F6xx
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Oscillator Type	Internal
Number of I/O	74
Speed	20MHz
RAM Size	18K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
Core Processor	CPUXV2
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, IrDA, LINbus, SCI, SPI, UART/USART, USB
Data Converter	A/D 16x12b; D/A 2x12b
RoHS Status	ROHS3 Compliant

MSP430F6636IZQWT Product Details

MSP430F6636IZQWT Overview

There is a 113-VFBGA package available. The board has 74 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. MSP430F6xx-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 128KB 128K x 8. Powered by a CPUXV2 Core processor.
