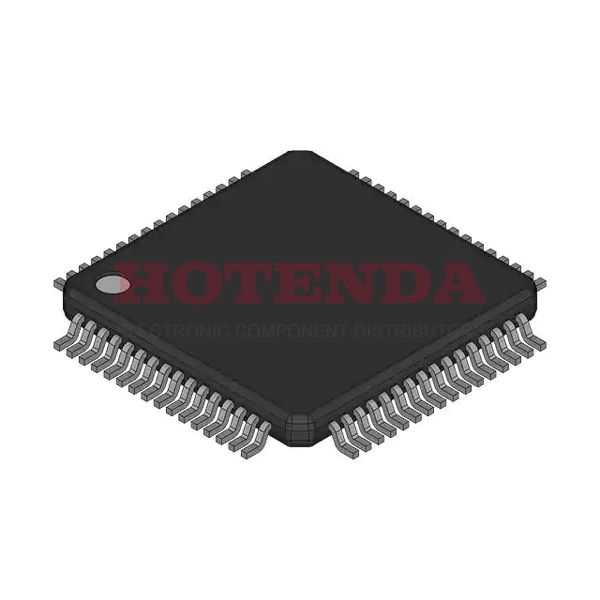

Name: AT90USB1287-16AU
Brand: Microchip Technology
SKU: AT90USB1287-16AU
Availability: InStock

new-10%

AT90USB1287-16AU

Manufacturer part number:AT90USB1287-16AU

Manufacturer:Microchip Technology

Description:Microcontroller 5V

Case Package:SOT-23

Datasheet:AT90USB1287-16AU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Number of Terminations	64
Additional Feature	ALSO OPERATES AT 1.8V MINIMUM SUPPLY
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
JESD-30 Code	S-PQFP-G64
Qualification Status	Not Qualified
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Number of I/O	48
Speed	16 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Clock Frequency	16MHz
Supply Current-Max	30mA
Bit Size	8
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Address Bus Width	16
ROM (words)	131072
External Data Bus Width	8
RAM (bytes)	8192
ROM Programmability	FLASH
Length	14mm
Height Seated (Max)	1.2mm
Width	14mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

AT90USB1287-16AU Product Details

AT90USB1287-16AU Overview

There are 48 I/Os on the Microcontroller. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 64 terminations were applied to the IC chip. 8-bits are used in Microcontroller. The MCU chip's supply output is 5V volts. Currently, MCU chip has NO DMA channels. There are YES PWM channels on the device. The clock function of this device is based on a 16MHz-frequency. As a few examples, there are additional features like ALSO OPERATES AT 1.8V MINIMUM SUPPLY that are available in the software.
