Name: ST72F361J9TCE
Brand: STMicroelectronics
SKU: ST72F361J9TCE
Availability: InStock

new-10%

ST72F361J9TCE

Manufacturer part number:ST72F361J9TCE

Manufacturer:STMicroelectronics

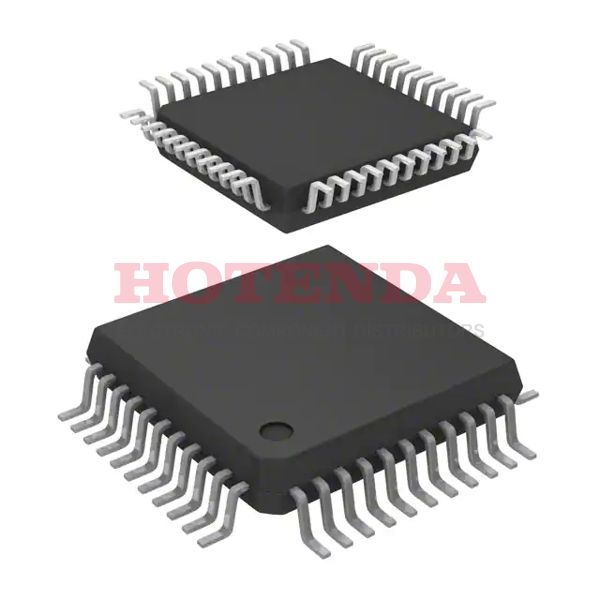

Description:60KB 60K x 8 FLASH 8-Bit Microcontroller ST7 Series ST72F36 44 Pin 8MHz 5V 44-LQFP

Case Package:SOT-23

Datasheet:ST72F361J9TCE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-LQFP
Number of Pins	44
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	ST7
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Max Power Dissipation	500mW
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.8mm
Frequency	8MHz
Base Part Number	ST72F36
Pin Count	44
Operating Supply Voltage	5V
Power Supplies	5V
Interface	SCI, SPI
Memory Size	60kB
Oscillator Type	External
Number of I/O	32
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	3.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	60KB 60K x 8
Connectivity	LINbusSCI, SPI
Bit Size	8
Data Converter	A/D 11x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
On Chip Program ROM Width	8
Number of Programmable I/O	34
Length	10mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ST72F361J9TCE Product Details

ST72F361J9TCE Overview

44-LQFP-packages are available. There are 32 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the ST7 series. This program memory has a size of 60KB 60K x 8, which indicates what the size of the program memory is. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 44 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 60kB. The base part number ST72F36 provides alternatives. This device is extremely efficient when operated at a frequency of 8MHz. Using the PWM channel YES, the device works with the motor. In this chip, 44 pins can be accessed. Using the timer/counter system, it has 2 timers/counters. It has 44 pins in total. This device has 34 programmable input and output channels.
