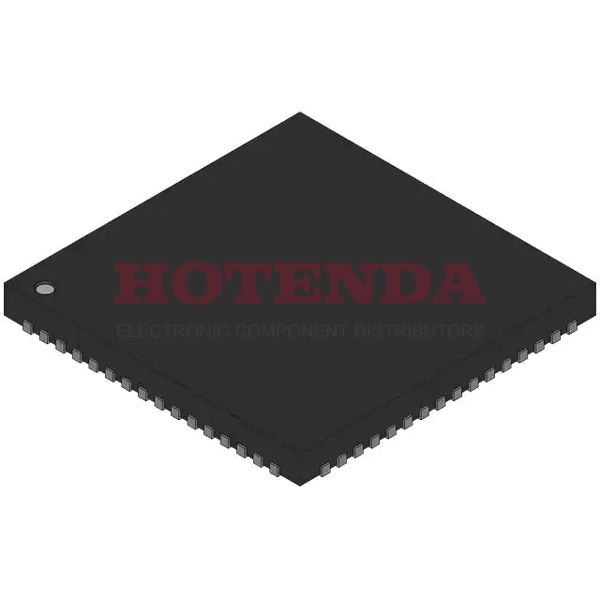

Name: AT90CAN32-15MZ
Brand: Microchip Technology
SKU: AT90CAN32-15MZ
Availability: InStock

new-10%

AT90CAN32-15MZ

Manufacturer part number:AT90CAN32-15MZ

Manufacturer:Microchip Technology

Description:32KB 32K x 8 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® 90CAN Series AT90CAN32 64 Pin 16MHz 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:AT90CAN32-15MZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Interfaces	JTAG/SPI/TWI/USART
Data Converters	A/D 8x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	AT90CAN32
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	53
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® 90CAN
Published	2005
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8MHZ
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	AT90CAN32
JESD-30 Code	S-XQCC-N64
Qualification Status	Not Qualified
Power Supplies	3/5 V
Temperature Grade	AUTOMOTIVE
Interface	CAN, I2C, SPI, UART, USART
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	53
Speed	16MHz
RAM Size	2K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	CANbus, I2C, SPI, UART/USART
Supply Current-Max	30 mA
Bit Size	8
Data Converter	A/D 8x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	4
Address Bus Width	16
ROM (words)	32768
Core Architecture	AVR
EEPROM Size	1K x 8
CPU Family	AVR RISC
Max Frequency	16MHz
External Data Bus Width	8
Number of Programmable I/O	53
RAM (bytes)	1024
ROM Programmability	FLASH
Device Core	AVR
Width	9 mm
Length	9 mm
RoHS Status	ROHS3 Compliant

AT90CAN32-15MZ Product Details

AT90CAN32-15MZ Overview

There is a 64-VFQFN Exposed Pad package available. The board has 53 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~125°C TA is the temperature range at which this Microcontroller operates. Automotive, AEC-Q100, AVR® 90CAN-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 32KB 32K x 8. Powered by a AVR Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. As a result, this Microcontroller comes with a 8-bit size. A total of NO DMA channels are available. This IC part has a memory size of 32kB. There are a number of alternatives to the base part number AT90CAN32 that you can find. Performing well when operated at frequency 16MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 64 pins that can be accessed. It comes with 4 timers/counters that can be set up. The device is powered by the the AVR RISC CPU family that is embedded in it. FLASH memory is one of the features of this equipment. The CPU is based on AVR cores. There are 53 Programmable I/Os on this computer. In addition to these features, there are a number of other ones, such as this one: ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8MHZ.
