Name: ATMEGA16-16PC
Brand: Microchip Technology
SKU: ATMEGA16-16PC
Availability: InStock

new-10%

ATMEGA16-16PC

Manufacturer part number:ATMEGA16-16PC

Manufacturer:Microchip Technology

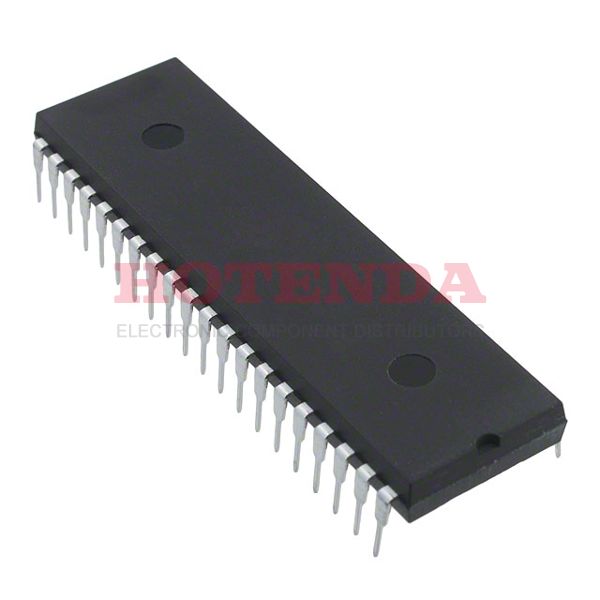

Description:16KB 8K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA16 40 Pin 16 MHz 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:ATMEGA16-16PC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Mount	Through Hole
Number of Pins	40
Supplier Device Package	40-PDIP
Data Converters	A/D 8x10b
Number of I/Os	32
RoHS	Compliant
Package	Tube
Base Product Number	ATMEGA16
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	AVR® ATmega
Published	1997
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Frequency	16 MHz
Base Part Number	ATMEGA16
Interface	I2C, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	4.5 V
Memory Size	16 kB
Oscillator Type	Internal
Number of I/O	32
Speed	16MHz
RAM Size	1K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 8K x 16
Connectivity	I2C, SPI, UART/USART
Data Converter	A/D 8x10b
Access Time	16 µs
Data Bus Width	8 b
Number of Timers/Counters	3
Core Architecture	AVR
EEPROM Size	512 x 8
Max Frequency	16 MHz
Number of Programmable I/O	32
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

ATMEGA16-16PC Product Details

ATMEGA16-16PC Overview

In a 40-DIP (0.600, 15.24mm) package, the MCU is available. 32 I/Os are available. The Microcontroller has a mounting type of Through Hole, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of 0°C~70°C TA that is operated by this Microcontroller. AVR® ATmega series components make up this electrical component. 16KB 8K x 16 is the size of its program memory. A AVR Core processor is used to power the device. 16 kB is the memory size of the part. The base part number ATMEGA16 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16 MHz. Located on the chip are 40 pins. The clock has 3 timers or counters on it. It has built-in FLASH memory. There is an integrated AVR core architecture in it. It programs in 32 Programmable I/O.
