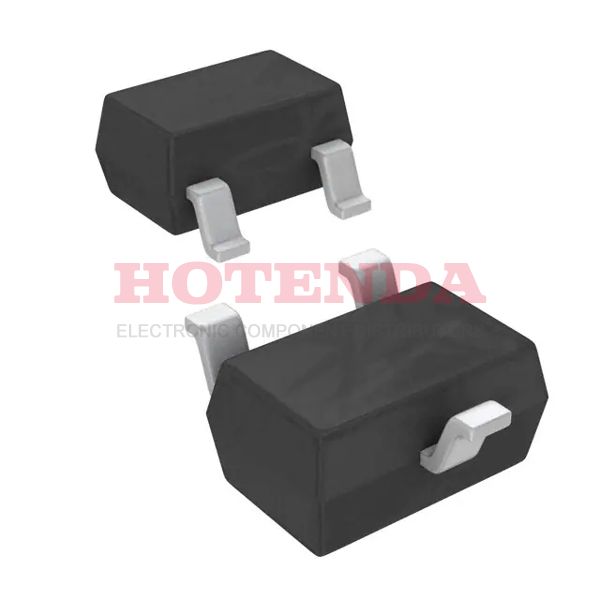

BAV199WT-TP

Name: BAV199WT-TP
Brand: Micro Commercial Co
SKU: BAV199WT-TP
Price: 0.29000 USD
Availability: InStock

new-10%

Manufacturer part number:BAV199WT-TP

Manufacturer:Micro Commercial Co

Description:BAV199WT-TP datasheet pdf and Diodes - Rectifiers - Arrays product details from Micro Commercial Co stock available on our website

Case Package:SOT-23

Datasheet:BAV199WT-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Cut Tape (CT)
Published	2008
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	10
JESD-30 Code	R-PDSO-G3
Operating Temperature (Max)	150°C
Number of Elements	2
Power Dissipation-Max	0.2W
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	5nA @ 75V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	0.16A
Voltage - DC Reverse (Vr) (Max)	85V
Current - Average Rectified (Io)	160mA
Reverse Recovery Time	3μs
Rep Pk Reverse Voltage-Max	85V
Diode Configuration	1 Pair Series Connection
RoHS Status	ROHS3 Compliant
