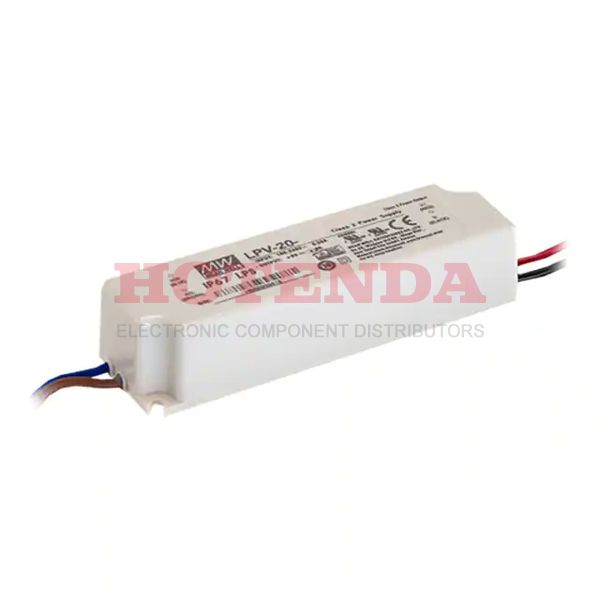

Name: LPV-20-5
Brand: MEAN WELL USA Inc.
SKU: LPV-20-5
Price: 12.47000 USD
Availability: InStock

new

LPV-20-5

Manufacturer part number:LPV-20-5

Manufacturer:MEAN WELL USA Inc.

Description:LED DRIVER CV AC/DC 5V 3A

Case Package:SOT-23

Datasheet:LPV-20-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Panel, Screw
Mounting Type	Chassis Mount
Number of Pins	4
Operating Temperature	-30°C~70°C
Series	LPV-20 (20W)
Size / Dimension	4.65Lx1.38W x 1.02 H 118.0mmx35.0mmx26.0mm
Feature	OCP, OVP, SCP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Cable
Type	Constant Voltage
Voltage - Rated	370V
Termination Style	Wire Leads
Number of Outputs	1
Approval Agency	CE, cURus, TUV
Efficiency	77%
Voltage - Isolation	3kV
Voltage - Input (Max)	264VAC
Voltage - Output 1	5V
Voltage - Input (Min)	90VAC
Output Current	3A
Output Power	15W
Topology	AC DC Converter
Current - Output 1	3A
Max Output Power	15W
Max Input Current	550mA
Height	25.908mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	IP67

About LPV-20-5

The LPV-20-5 from MEAN WELL USA Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED DRIVER CV AC/DC 5V 3A.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the LPV-20-5, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
