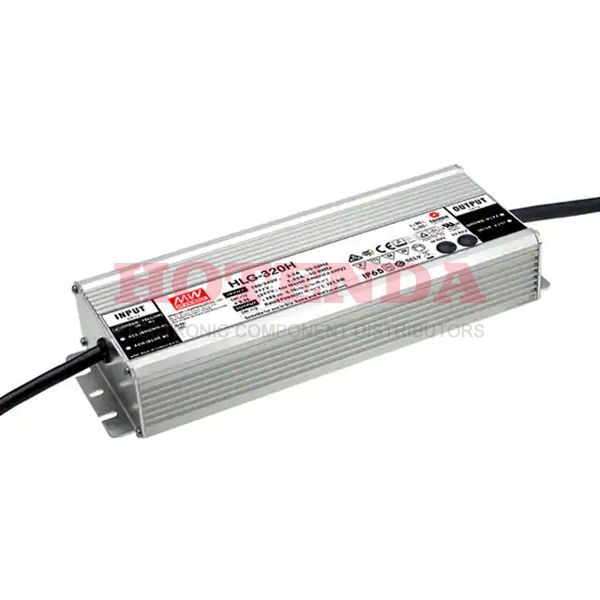

Name: HLG-320H-48A
Brand: MEAN WELL USA Inc.
SKU: HLG-320H-48A
Price: 103.16000 USD
Availability: InStock

new

HLG-320H-48A

Manufacturer part number:HLG-320H-48A

Manufacturer:MEAN WELL USA Inc.

Description:LED DRVR CC/CV AC/DC 43-52V 6.7A

Case Package:SOT-23

Datasheet:HLG-320H-48A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Panel, Screw
Mounting Type	Chassis Mount
Number of Pins	5
Operating Temperature	-40°C~90°C
Series	HLG-320H (320W)
Size / Dimension	8.87Lx3.54W x 1.72 H 225.2mmx90.0mmx43.8mm
Feature	OCP, OTP, OVP, SCP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Cable
Type	Constant Current, Voltage
Power (Watts)	322W
Voltage - Rated	431V
Depth	90mm
Termination Style	Wire Leads
Number of Outputs	1
Approval Agency	CB, CCC, CE, cURus, PSE, RCM, TUV
Efficiency	95%
Voltage - Isolation	3.75kV
Voltage - Input (Max)	305VAC
Voltage - Output 1	48V
Voltage - Input (Min)	90VAC
Output Current	6.7A
Output Power	321.6W
Voltage - Output	43V~52V
Topology	AC DC Converter
Max Output Power	321.6W
Max Input Current	3.5A
Height	43.688mm
RoHS Status	ROHS3 Compliant
Ratings	IP65

About HLG-320H-48A

The HLG-320H-48A from MEAN WELL USA Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED DRVR CC/CV AC/DC 43-52V 6.7A.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the HLG-320H-48A, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
