Name: SPX2815AT-L
Brand: MaxLinear, Inc.
SKU: SPX2815AT-L
Availability: InStock

new-10%

SPX2815AT-L

Manufacturer part number:SPX2815AT-L

Manufacturer:MaxLinear, Inc.

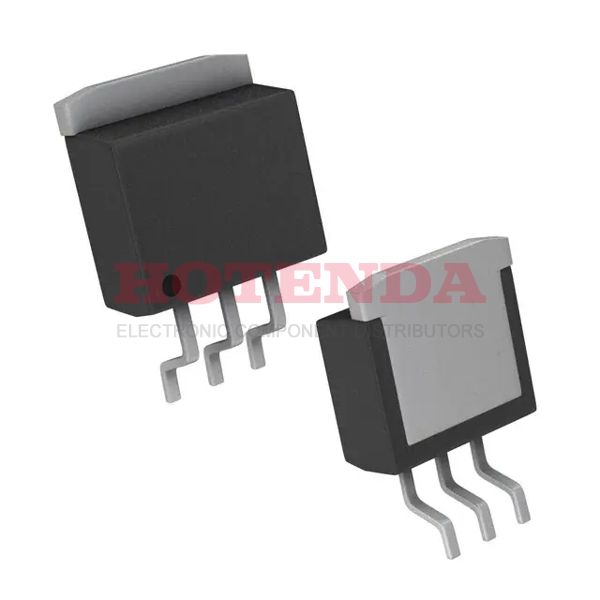

Description:Adjustable 2.54mm PMIC TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:SPX2815AT-L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	2.54mm
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	R-PSSO-G3
Qualification Status	Not Qualified
Voltage - Input (Max)	10V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1.5A
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	1.2V @ 1.5A
PSRR	75dB (120Hz)
Voltage - Output (Max)	15V
Height Seated (Max)	5.08mm
RoHS Status	RoHS Compliant

SPX2815AT-L Product Details

SPX2815AT-L Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in TO-263-4, D2Pak (3 Leads + Tab), TO-263AA case. On the Linear IC itself, there are 3 terminations. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1.5A from this regulator IC.
