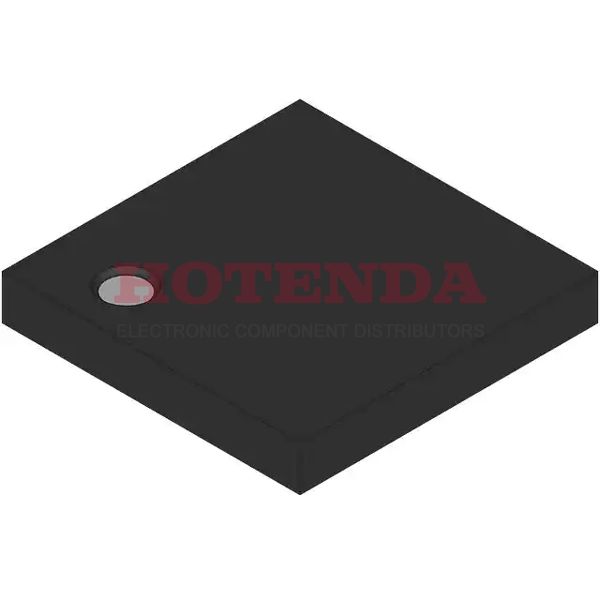

Name: ISL6414IRZ
Brand: Rochester Electronics, LLC
SKU: ISL6414IRZ
Availability: InStock

new-10%

ISL6414IRZ

Manufacturer part number:ISL6414IRZ

Manufacturer:Rochester Electronics, LLC

Description:Enable, Fault Output, Reset Fixed PMIC 16-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:ISL6414IRZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-VQFN Exposed Pad
Supplier Device Package	16-QFN (4x4)
Operating Temperature	-40°C~85°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Voltage - Input (Max)	3.6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA 300mA 200mA
Control Features	Enable, Fault Output, Reset
Voltage - Output (Min/Fixed)	1.8V 2.84V 2.84V
Number of Regulators	3
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Current - Quiescent (Iq)	850μA
Voltage Dropout (Max)	- 0.22V @ 300mA 0.2V @ 200mA
RoHS Status	ROHS3 Compliant

ISL6414IRZ Product Details

ISL6414IRZ Overview

Deliveries are in Tube cases. The package is in a 16-VQFN Exposed Pad case. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 3 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~85°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 500mA 300mA 200mA on this regulator.
