Name: MAX8877EZK25+
Brand: Maxim Integrated
SKU: MAX8877EZK25+
Availability: InStock

new-10%

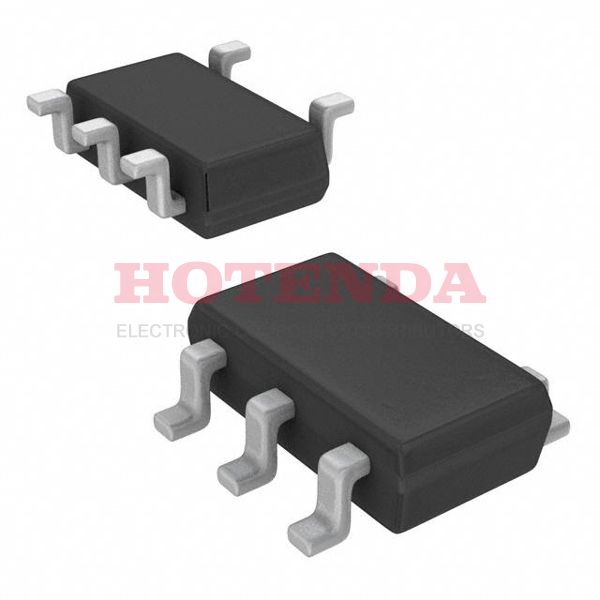

MAX8877EZK25+

Manufacturer part number:MAX8877EZK25+

Manufacturer:Maxim Integrated

Description:Enable Fixed 0.95mm PMIC 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MAX8877EZK25+ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.95mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	100μA
Qualification Status	Not Qualified
Voltage - Input (Max)	6.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Output Voltage 1	2.5V
Input Voltage (Min)	2.6V
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Current - Quiescent (Iq)	180μA
Voltage Dropout (Max)	0.165V @ 150mA Typ
Output Voltage1-Max	2.55V
Output Voltage1-Min	2.425V
Length	2.9mm
RoHS Status	ROHS3 Compliant

MAX8877EZK25+ Product Details

MAX8877EZK25+ Overview

In SOT-23-5 Thin, TSOT-23-5 cases, it is packaged. This gadget has 5 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~85°C TA degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 150mA at the moment. 5 pins make up the sum of this IC voltage regulator.
