Name: MCP1810T-25I/TT
Brand: Microchip Technology
SKU: MCP1810T-25I/TT
Availability: InStock

new-10%

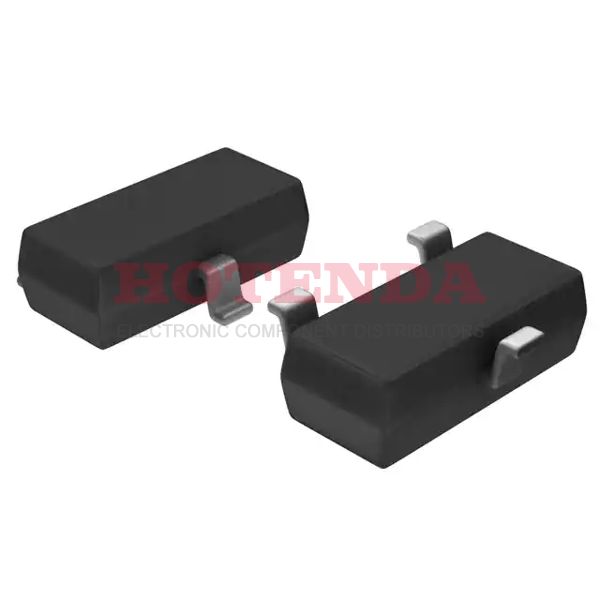

MCP1810T-25I/TT

Manufacturer part number:MCP1810T-25I/TT

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95mm MCP1810 PMIC -- Series TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:MCP1810T-25I/TT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Supplier Device Package	SOT-23-3
Number of Terminals	3
Package	Tape & Reel (TR)
Base Product Number	MCP1810
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~85°C TJ
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	MCP1810
JESD-30 Code	R-PDSO-G3
Current - Supply (Max)	290μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Output Voltage 1	2.5V
Input Voltage (Min)	2.7V
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current
Current - Quiescent (Iq)	50nA
Voltage Dropout (Max)	0.38V @ 150mA
PSRR	40dB (100Hz)
Seated Height-Max	1.12 mm
Output Voltage1-Max	2.55V
Output Voltage1-Min	2.45V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.38 V
Screening Level	TS 16949
Operating Temperature TJ-Max	85 °C
Input Voltage Absolute-Max	6V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.5 V
Length	2.9mm
Width	1.3 mm
RoHS Status	RoHS Compliant

MCP1810T-25I/TT Product Details

MCP1810T-25I/TT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-236-3, SC-59, SOT-23-3 package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C TJ degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is MCP1810. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TR. It is part of the -- Series.
