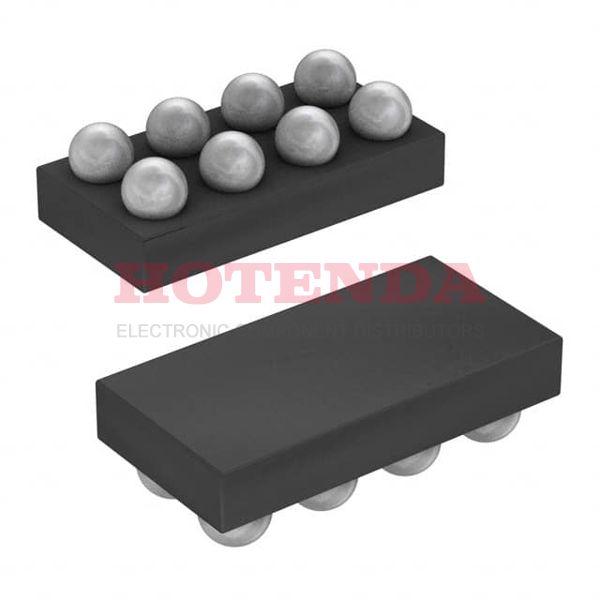

Name: MAX8559EBAGG+T
Brand: Maxim Integrated
SKU: MAX8559EBAGG+T
Availability: InStock

new-10%

MAX8559EBAGG+T

Manufacturer part number:MAX8559EBAGG+T

Manufacturer:Maxim Integrated

Description:Enable Fixed 0.5mm MAX8559 PMIC 8 8-WFBGA, CSPBGA

Case Package:SOT-23

Datasheet:MAX8559EBAGG+T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-WFBGA, CSPBGA
Number of Pins	8
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2005
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Packing Method	TAPE AND REEL
Max Power Dissipation	379mW
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Base Part Number	MAX8559
Pin Count	8
Number of Outputs	2
Voltage - Input (Max)	6.5V
Output Voltage	3V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA 300mA
Quiescent Current	290μA
Control Features	Enable
Accuracy	1 %
Output Voltage 1	3V
Voltage - Output (Min/Fixed)	3V 3V
Number of Regulators	2
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature, Short Circuit
Voltage Dropout (Max)	0.12V @ 100mA 0.12V @ 100mA
PSRR	70dB ~ 54dB (10kHz ~ 100kHz)
Reference Voltage	1.25V
Dropout Voltage	60mV
Dropout Voltage1-Nom	0.06V
Voltage Tolerance-Max	3%
Min Current Limit	310mA
Input Voltage Absolute-Max	7V
Input Bias Current	180μA
Output Voltage 2	3V
Height Seated (Max)	0.67mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MAX8559EBAGG+T Product Details

MAX8559EBAGG+T Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. Packaged in a 8-WFBGA, CSPBGA case, the battery regulator IC is protected from damage during shipment. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 2 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 300mA 300mA. There are totally 8 pins on this chip. To ensure prompt, sufficient performance, this part features 2 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 8. FYI, the basic part number for this IC regulator is MAX8559. The way of packing the voltage regulator IC is TAPE AND REEL. It operates in the 290μA Quiescent Current state.
