Name: SG7905T
Brand: Microchip Technology
SKU: SG7905T
Availability: InStock

new-10%

SG7905T

Manufacturer part number:SG7905T

Manufacturer:Microchip Technology

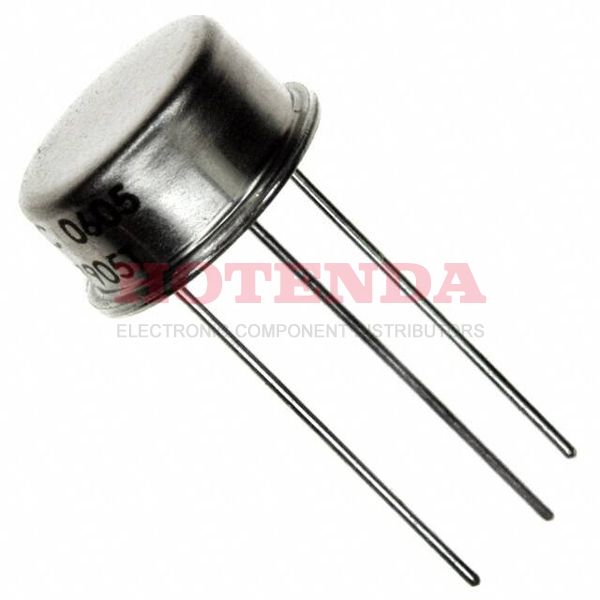

Description:- Fixed SG7905 PMIC Military, MIL-STD-883 Series 3 TO-205AD, TO-39-3 Metal Can

Case Package:SOT-23

Datasheet:SG7905T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Number of Pins	3
Supplier Device Package	TO-39
Mounting Style	SMD/SMT
Supplier Package	TO-39
Junction to Case	15 °C/W
Input Voltage Range	-35 V
Maximum Input Voltage	-35 V
Junction to Ambient	120 °C/W
Mounting	Through Hole
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 55 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Bulk
Base Product Number	SG7905
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-55°C~125°C TA
Packaging	Bulk
Series	Military, MIL-STD-883
Published	1999
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Terminal Position	BOTTOM
Terminal Form	WIRE
Number of Functions	1
Base Part Number	SG7905
Pin Count	3
Function	Standard
Number of Outputs	1
Voltage - Input (Max)	-35V
Output Voltage	-5V
Output Type	Fixed
Max Output Current	1.4A
Polarity	Negative
Output Configuration	Negative
Output Current	1.4 A
Current - Output	1.5A
Quiescent Current	2mA
Control Features	-
Accuracy	1.5 %
Output Voltage 1	5V
Input Voltage (Min)	7.5V
Voltage - Output (Min/Fixed)	-5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Thermal Shutdown
Current - Quiescent (Iq)	2.5mA
Voltage Dropout (Max)	2.3V @ 500mA
PSRR	54dB (120Hz)
Product Type	Linear Voltage Regulators
Dropout Voltage1-Nom	2.3V
Voltage Tolerance-Max	6%
Voltage - Output (Max)	-
Line Regulation	50 mV
Load Regulation	100 mV
Product	Negative Fixed Voltage Regulator
Product Category	Linear Voltage Regulators
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Exempt

SG7905T Product Details

SG7905T Overview

The package is delivered in a Bulk case. In order to package the IC voltage regulator, a TO-205AD, TO-39-3 Metal Can case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -55°C~125°C TA degrees for it to function. As you can see, this regulator's output function is configured to be Negative. At present, it can produce an output of up to 1.5A. As you can see, the regulator IC has a total of 3 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. Depending on the chip, 3 pins may be available. For your information, part number SG7905 is the basic part number for this voltage regulator IC. There is a maximum output current of 1.4A for this regulator to meet the operational requirements. It operates in the 2mA Quiescent Current state. The Military, MIL-STD-883 Series is a series of products made by D-Link.
