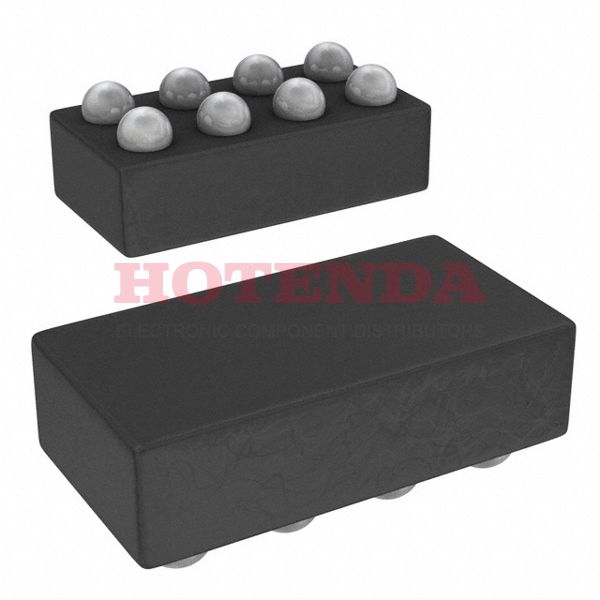

MAX17048X+ Overview
The package 8-WFBGA, WLCSP is appropriate for battery instrument. This power management IC utilizes an analog IC POWER SUPPLY SUPPORT CIRCUIT. A total of 1 channels are available. 8 pins are on it. The package contains a Bulk case. You can mount this electronic part by using Surface Mount. Surface Mount is in the way of this electronic component. The Battery Monitor functions are available. For the electric part to perform effectively, it should operate at a temperature around -20°C~70°C TA. This electronic part has a chemistry of Lithium-Ion. A MAX17048 family is used in it. Using this battery instrument, you can discover a value of RESET THRESHOLD VOLTAGE IS 3 VOLT. A voltage greater than 2.5V must be present in Vsup (supply voltage). A maximum current supply (Isup) of 0.04mA is permitted. 4.5V is the operating supply voltage specified for this battery instrument. In this case, ModelGauge™ represents the series number of the battery protection IC. With a supply voltage of 23μA volts, it runs.
MAX17048X+ Features
Available in 8-WFBGA, WLCSP Package
with 8 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
Output Voltage at the range of 400mV
MAX17048X+ Applications
There are a lot of Maxim Integrated
MAX17048X+ Battery Management ICs applications.
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
