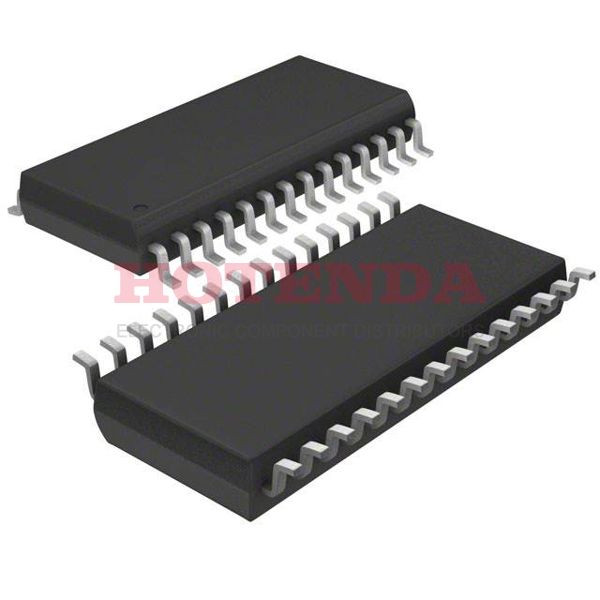

DS2790E+ Overview
A 28-TSSOP (0.173, 4.40mm Width) package would be appropriate for this. IC POWER SUPPLY MANAGEMENT CIRCUIT is the system battery's analog IC. The available channels are 1. Tube cases are used for packaging. Surface Mount is the mount number for this electronic part. Surface Mount is positioned in the way of this electronic part. It can provide functions of type Multi-Function Controller. For the electronic part to perform properly, it should be operated at temperature -20°C~70°C TA. A battery chemistry of Lithium-Ion is used in this electronic part. There is a 3/5V volt power source. It is recommended that this battery protection IC be set to 3.7V at all times. The model is based on the DS2790 family. A voltage of 5.5V is reached when the maximum supply voltage (Vsup) is reached. A voltage greater than 2.5V (Vsup) must be required for a power supply. Unless specified otherwise, Isup (the maximum supply current) must not exceed 3.3mA.
DS2790E+ Features
Available in 28-TSSOP (0.173, 4.40mm Width) Package
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 3.7V
Supply Voltage-Max (Vsup) : 5.5V
DS2790E+ Applications
There are a lot of Maxim Integrated
DS2790E+ Battery Management ICs applications.
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
