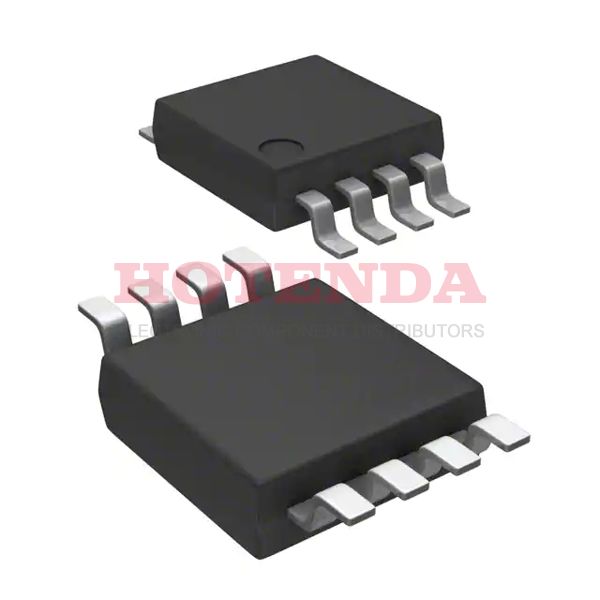

DS1091LUB-027/V+T Overview
A clock integrated circuit is packaged in a Tape & Reel (TR)-shaped package because it is for use as a clock. The 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package embeds this Clock PLL. This Clock PLL will be fed by Clock as its input. To access the electronic component's full performance, 1 circuits are implemented. RF synthesizers based on this clock provide frequencies up to 27MHz maximum. The Surface Mount allows the electrical component to be installed conveniently on the panel. As far as the supply voltage is concerned, clock PLL can be used with 3V~3.6V. Test statistics suggest setting the ambient temperature at -40°C~125°C, which is -40°C~125°C. It is possible to classify this electronic component as a Spread Spectrum Clock Generator. You can find related electrical components to the base part number DS1091L. There are 8 pins on the frequency generator that are available for use. There is a maximum supply voltage of 3.3V that frequency generators can handle. There is an electronic part in this series that belongs to the Automotive, AEC-Q100, EconOscillator? family. The supply current of 16mA needs to be provided to fully play clock generator's function.
DS1091LUB-027/V+T Features
Available in the 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Operating supply voltage of 3.3V
DS1091LUB-027/V+T Applications
There are a lot of Maxim Integrated DS1091LUB-027/V+T Clock Generators applications.
- FSK demodulators
- Camera systems
- Test and instrumentation equipment
- Cellular/4G
- Signal frequency synthesis circuits
- Computers to manage memory cards
- Set-top boxes
- High-frequency induction heating
- Wireless handsets
- Radiotelephones
