SSL-LXA3025IGC-TR datasheet pdf and LED Indication - Discrete product details from Lumex Opto/Components Inc. stock available on our website
SOT-23
SSL-LXA3025IGC-TR Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
4-SMD, Gull Wing
Number of Pins
4
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2003
Size / Dimension
3.40mm Lx2.80mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
4
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Green, Red
Subcategory
Visible LEDs
Power Rating
100mW
Packing Method
TAPE AND REEL
Number of Functions
1
Terminal Pitch
3.9mm
Configuration
Independent
Voltage - Forward (Vf) (Typ)
2.2V Green 2V Red
Viewing Angle
130°
Optoelectronic Device Type
DUAL COLOR LED
Forward Current
20mA
Current - Test
20mA Green 20mA Red
Lens Style
Rectangle with Flat Top
Luminous Intensity
20 mcd
Millicandela Rating
20mcd Green, 12mcd Red
Illumination Color
Green, Red
Lens Transparency
Clear
Wavelength - Peak
565nm Green 635nm Red
Lens Color
Colorless
Forward Voltage-Max
2.8V
Height
1.5mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:10318 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
SSL-LXA3025IGC-TR Product Details
Description:

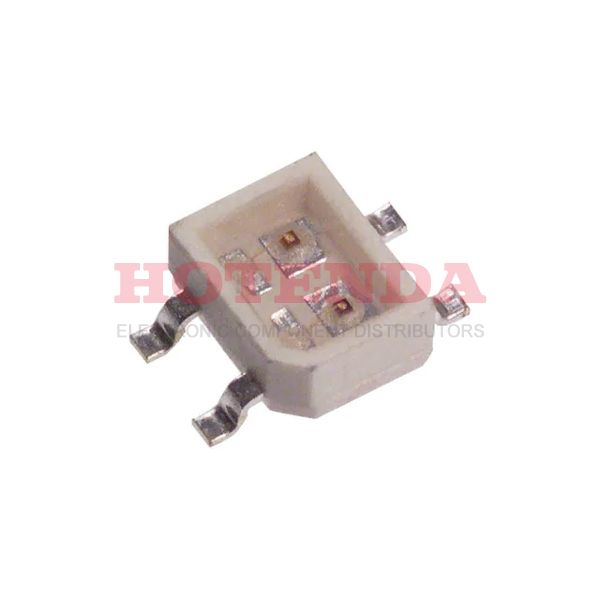

The Lumex SSL-LXA3025IGC-TR is a discrete LED indication device with a green and red LED. It has a low current consumption of 12mcd for the red LED and 20mcd for the green LED. The device has a viewing angle of 130 degrees and a forward voltage of 2V for the red LED and 2.2V for the green LED.
Features: • Low current consumption of 12mcd for the red LED and 20mcd for the green LED • Viewing angle of 130 degrees • Forward voltage of 2V for the red LED and 2.2V for the green LED • RoHS compliant
Applications: The Lumex SSL-LXA3025IGC-TR is suitable for a variety of applications including automotive, industrial, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting.
