SML-LX2832GC-TR datasheet pdf and LED Indication - Discrete product details from Lumex Opto/Components Inc. stock available on our website
SOT-23
SML-LX2832GC-TR Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
2-PLCC
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2007
Size / Dimension
3.20mm Lx2.80mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
Terminal Finish
NOT SPECIFIED
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Green
Subcategory
Visible LEDs
Power Rating
100mW
Packing Method
TAPE AND REEL
Number of Functions
1
Terminal Pitch
3mm
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2.1V
Viewing Angle
120°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Current - Test
20mA
Lens Style
Round with Flat Top
Lens Size
2.40mm Dia
Luminous Intensity
25 mcd
Lens Transparency
Clear
Lens Color
Colorless
Number of LEDs
1
Dominant Wavelength
565 nm
Height
2.1mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:12311 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.554474
$0.554474
10
$0.523089
$5.23089
100
$0.493480
$49.348
500
$0.465547
$232.7735
1000
$0.439195
$439.195
SML-LX2832GC-TR Product Details

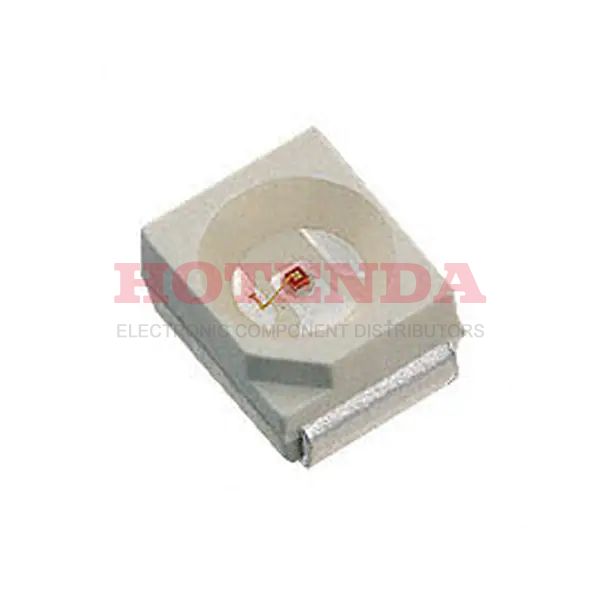

The Lumex LED Indication - Discrete SML-LX2832GC-TR is a two-pin, surface-mount LED with a green, clear lens. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle of 120° and a low forward voltage of 2.2V. It is RoHS compliant and has a maximum power dissipation of 100mW. The LED is designed to be used in a variety of applications, including backlighting, status indication, and decorative lighting. It is also suitable for use in automotive, industrial, and consumer electronics. The LED is designed to be reliable and long-lasting, with a lifetime of up to 100,000 hours. It is also designed to be energy efficient, with a low power consumption of only 0.2W. The LED is also designed to be easy to install, with a simple two-pin design.
