SSL-LX20R6SRD datasheet pdf and LED Indication - Discrete product details from Lumex Opto/Components Inc. stock available on our website
SOT-23
SSL-LX20R6SRD Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
10 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Number of Pins
2
Weight
4.535924g
Packaging
Bulk
Published
2001
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Terminal Finish
Tin (Sn)
Color
Red
Subcategory
Visible LEDs
Number of Functions
1
Operating Temperature (Max)
85°C
Operating Temperature (Min)
-40°C
Configuration
Standard
Voltage - Forward (Vf) (Typ)
5.1V
Viewing Angle
120°
Optoelectronic Device Type
SINGLE COLOR LED DISPLAY CLUSTER
Forward Current
20mA
Lens Style
Round with Domed Top
Lens Size
20.00mm Dia
Luminous Intensity
60 mcd
Millicandela Rating
60mcd
Lens Transparency
Diffused
Wavelength - Peak
660nm
Forward Voltage-Max
6V
Diameter
20mm
Height
13.5mm
Length
38.1mm
Width
63.5mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:1384 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$4.98000
$4.98
10
$4.15300
$41.53
41
$3.48805
$143.01005
123
$2.98984
$367.75032
287
$2.65760
$762.7312
533
$2.40844
$1283.69852
SSL-LX20R6SRD Product Details

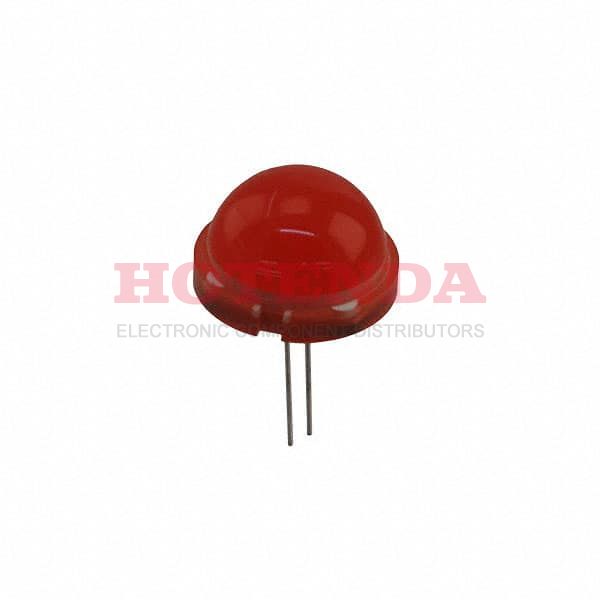

Description: The Lumex LED Indication - Discrete SSL-LX20R6SRD is a 6-chip jumbo LED with a red diffused lens. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle and is capable of producing a bright, uniform light output.
Features: - 6-chip jumbo LED with red diffused lens - Wide viewing angle - Bright, uniform light output - Low power consumption - RoHS compliant
Applications: The Lumex LED Indication - Discrete SSL-LX20R6SRD is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for backlighting, status indication, and decorative lighting. It is also suitable for use in medical devices, security systems, and other applications where a bright, uniform light output is desired.
