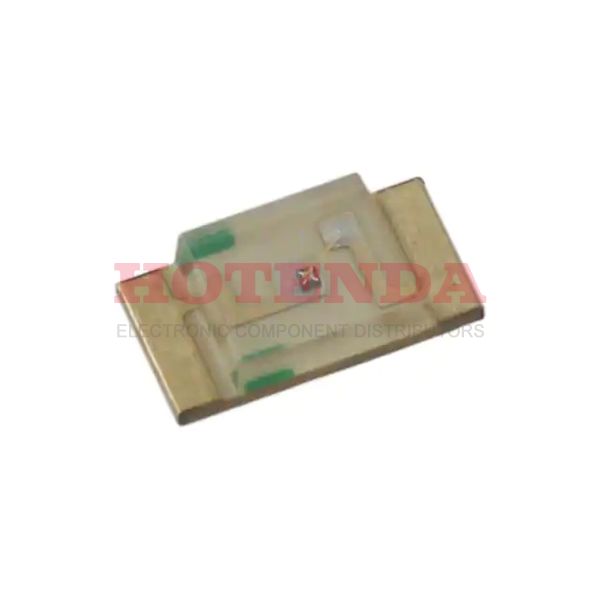

APT3216SURCK datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
APT3216SURCK Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2009
Size / Dimension
3.20mm Lx1.60mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Red
Subcategory
Visible LEDs
Power Rating
75mW
Packing Method
TAPE AND REEL
Number of Functions
1
Terminal Pitch
3.75mm
Case Code (Metric)
3216
Case Code (Imperial)
1206
Configuration
Standard
Voltage - Forward (Vf) (Typ)
1.95V
Viewing Angle
120°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
2.00mmx1.60mm
Luminous Intensity
220 mcd
Millicandela Rating
80mcd
Lens Transparency
Clear
Wavelength - Peak
645nm
Lens Color
Colorless
Wavelength - Dominant
630nm
Number of LEDs
1
Reverse Voltage-Max
5V
Height
750μm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:19024 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.259205
$0.259205
10
$0.244533
$2.44533
100
$0.230692
$23.0692
500
$0.217634
$108.817
1000
$0.205315
$205.315
APT3216SURCK Product Details
Description: The Kingbright APT3216SURCK is a discrete LED indication component in a 0603 SMD package. It features a red clear chip and is designed for use in a variety of applications.
Features: - 0603 SMD package - Red clear chip - Low power consumption - High brightness - Long life - RoHS compliant
Applications: The Kingbright APT3216SURCK is suitable for a variety of applications, including automotive, consumer electronics, industrial, and medical. It can be used for backlighting, status indication, and decorative lighting.
