Name: L201E6
Brand: Littelfuse Inc.
SKU: L201E6
Availability: InStock

new-10%

L201E6

Manufacturer part number:L201E6

Manufacturer:Littelfuse Inc.

Description:L201E6 datasheet pdf and Thyristors - TRIACs product details from Littelfuse Inc. stock available on our website

Case Package:SOT-23

Datasheet:L201E6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole

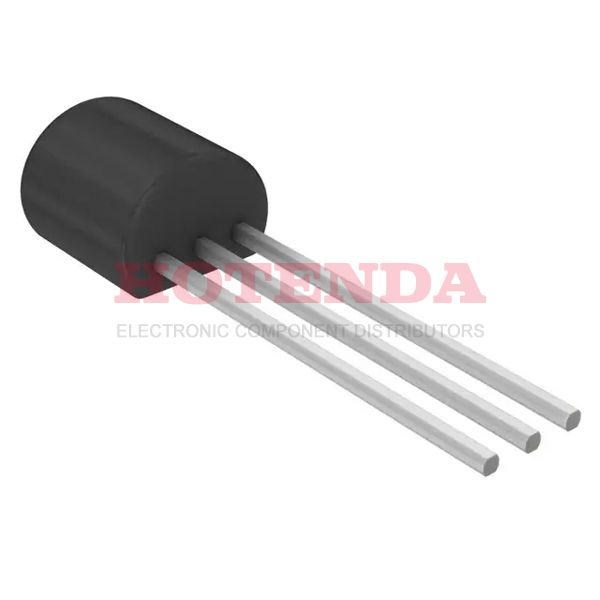

Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Operating Temperature	-65°C~125°C TJ
Packaging	Bulk
Published	2005
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	HIGH RELIABILITY
HTS Code	8541.30.00.80
Voltage - Rated DC	200V
Terminal Position	BOTTOM
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	unknown
Current Rating	1A
Time@Peak Reflow Temperature-Max (s)	10
Pin Count	3
JESD-30 Code	O-PBCY-T3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	Single
Case Connection	ISOLATED
RMS Current (Irms)	1A
Hold Current	10mA
Trigger Device Type	4 QUADRANT LOGIC LEVEL TRIAC
Voltage - Gate Trigger (Vgt) (Max)	1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm)	16.7A 20A
Current - Gate Trigger (Igt) (Max)	5mA
Current - Hold (Ih) (Max)	10mA
Leakage Current (Max)	0.01mA
Critical Rate of Rise of Off-State Voltage-Min	30V/us
Triac Type	Logic - Sensitive Gate
RMS On-state Current-Max	1A
Critical Rate of Rise of Commutation Voltage-Min	1V/us
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About L201E6

The L201E6 from Littelfuse Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features L201E6 datasheet pdf and Thyristors - TRIACs product details from Littelfuse Inc. stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the L201E6, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
