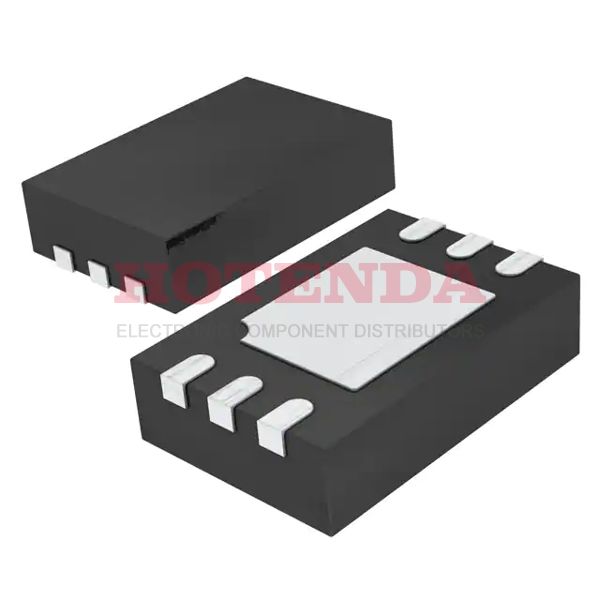

LTC2942CDCB-1#TRPBF Overview
The package 6-WFDFN Exposed Pad is appropriate for battery instrument. This power management IC utilizes an analog IC POWER SUPPLY SUPPORT CIRCUIT. A total of 1 channels are available. The package contains a Tape & Reel (TR) case. Surface Mount is in the way of this electronic component. The Battery Monitor functions are available. For the electric part to perform effectively, it should operate at a temperature around 0°C~70°C TA. This electronic part has a chemistry of Lithium-Ion. Voltage 3/5V is used to power it. It is always recommended that this battery protection IC is set to 3.6V. A LTC2942 family is used in it. There is a maximum supply voltage (Vsup) of 5.5V. A voltage greater than 2.7V must be present in Vsup (supply voltage). A maximum current supply (Isup) of 0.45mA is permitted.
LTC2942CDCB-1#TRPBF Features
Available in 6-WFDFN Exposed Pad Package
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 3.6V
Supply Voltage-Max (Vsup) : 5.5V
LTC2942CDCB-1#TRPBF Applications
There are a lot of Linear Technology/Analog Devices
LTC2942CDCB-1#TRPBF Battery Management ICs applications.
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
